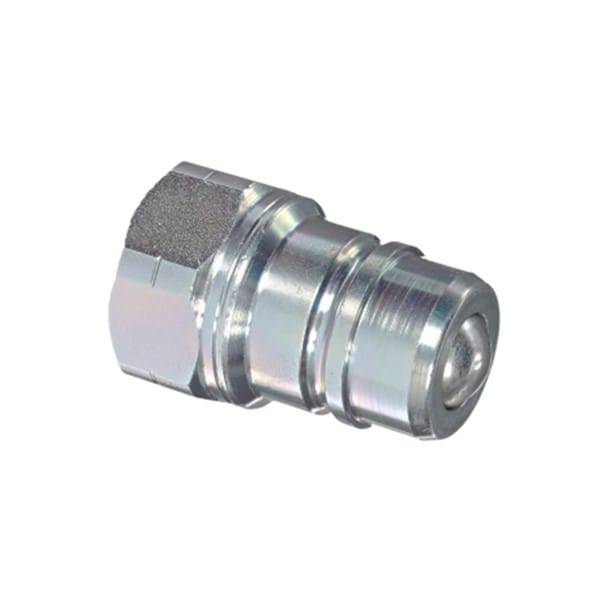

Agricultural Type – Ball Type 3/8″ (-06) Insert with 3/8″(-06) BSP Female Thread – Carbon Steel
Agricultural Interchange – Hydraulic Quick Coupler Insert
Interchangeable: ISO 7241-1 A Series
Insert Size: 3/8″
Ø DN: 3/8″ – 10mm
Thread Size: 3/8″ BSP Female
Temperature Range: -20°C to +110°C
Pressure Rating: 4567Psi – 315Bar
Burst Pressure: 18270Psi – 1260Bar
Standard Nitrile Seals
Also knows as Series N and RX Series.
Features:
Basic operation where coupler sleeve is manually retracted to allow connection with male tip.
Plugs/Nipples/Inserts are treated with induction hardening
Ball and poppet valve options
Internal valves in hardened steel
Standard seals in nitril rubber
Back-Up Seals in teflon
Applications include:
Hydraulic loaders, Add-on hydraulic circuits, Hydraulic tools, Construction equipment, Forestry equipment, Agricultural equipment, Oil equipment steel mill machinery, Other demanding hydraulic applications
Other know codes: Q-QCM-06-BALL, NM20-06
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
