60 Steam Series 3/8″ (-06) Insert with 3/8″ (-06) NPTF Female Thread – Brass Insert
Hydraulic Multi Purpose Steam Quick Coupler Insert

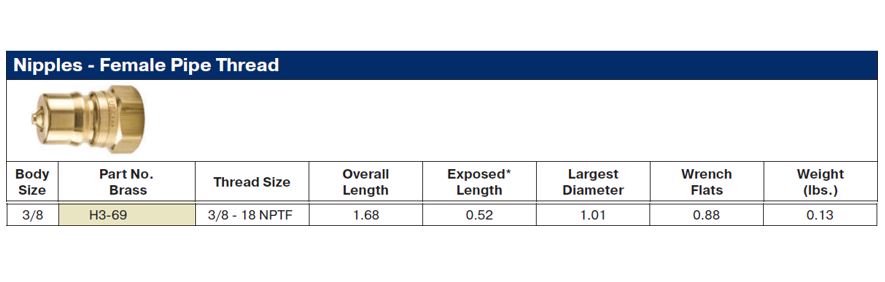

Equivalent to Parker H3-69
ISO 7241 – B Series
Manual Sleeve – Poppet Valve – Pin Type
Double Shut-Off
Insert Size: 3/8″
Thread Size: 3/8″-18 NPTF Female
Temperature Range: -4°C to +121°C
Max Pressure: 4000Psi – 275Bar
60 Series Steam couplings are brass with stainless steel locking balls and ethylene propylene seals to withstand temperatures up to 400°F/205°C
Features:
Accepts ISO 7241-1, Series B compliant nipples/inserts.
Poppet valves along with a metal to metal valve stop maintains valve alignment and prevents flow checking.
Brass couplers have double O-rings and stainless steel locking balls.
Standard end configuration is female pipe thread.
Applications:
Steam systems
Cleaning equipment
NPTF Stands for: National Pipe Taper Fuel (NPTF), also called Dryseal American National Standard Taper Pipe Thread, defined by ASME B1. 20.3, designed to provide a more leak-free seal without the use of PTFE tape (aka “Teflon”) or other sealant compound. NPTF can be used with normal NPT.
Other know codes: Q-H3-69, H3-69
