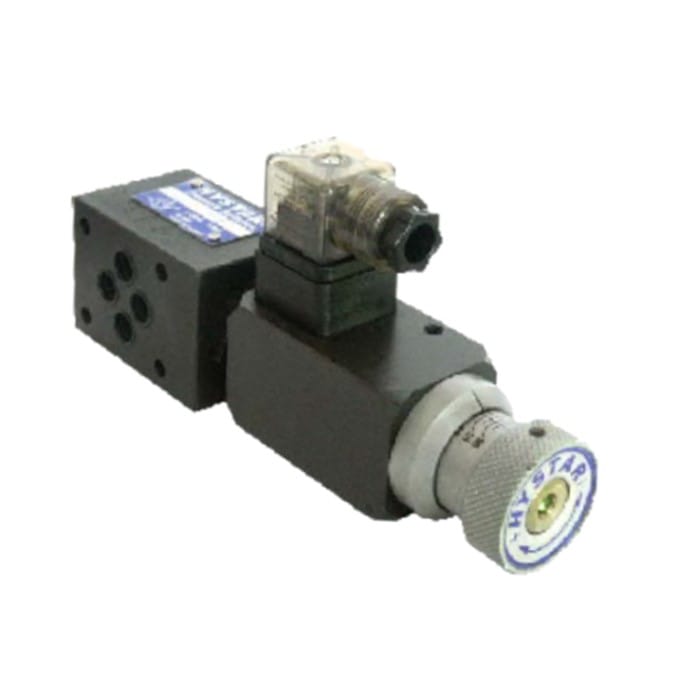

Hystar DNM Series Pressure Switch – Sandwich Type – 40 to 250Bar
Model: 250K
Pressure Adj. Range: 40 ~ 250Bar
Hand Knob Adjustable Pressure Switch
NG6 Pressure Switch – with fixed pressure differential
For use with solenoid valves: 01-ISO 03/Cetop 3/NFPA D03
Pressure transform line – On P
Includes: Hand Knob, Pressure Scale, DIN Plug connector for both Normally Open or Normally Closed electrical connection and DIN 912 Bolts
Capacity: 110 ~ 250 VAC @ 0.5Amp or 12 ~ 24VDC @ 1Amp
Surge Pressure: 350Bar
Design Number: 21B with DIN 912 bolts
Mounting Position is unlimited
Material: Body is Cast Iron, Element Steel
Construction position: Position type, spring loaded
No drain line
Long service life
Recommended max operations 20 per minute.
Compact and robust with direct pressure read out.
Other known codes: DNM-01P-250K-21B, DNM-250K-01P-21B, PS-DNM250K1P, DNM-250K-21B, DNM01P250K, DNM250K21B
