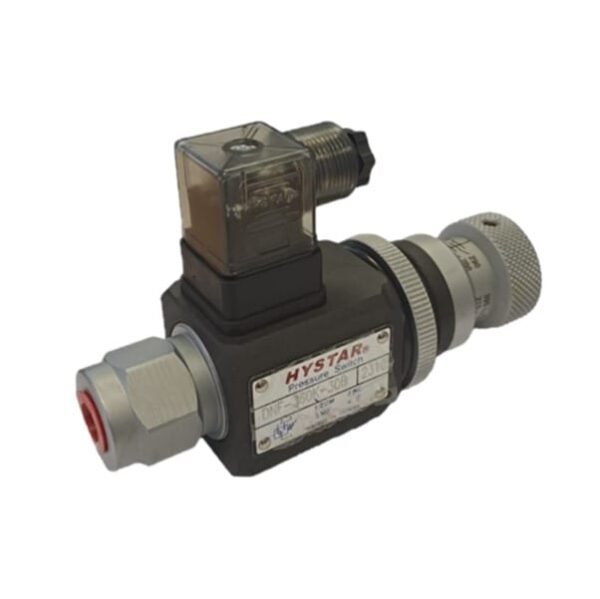

Hystar DNF Series Pressure Switch – Direct Read-Out Panel Mounting Type – 50 to 360Bar
Model: 360K
Pressure Adj. Range: 50 ~ 360Bar
Hand Knob Adjustable Pressure Switch
Fixed Differential – with pressure scale
Has a panel mount (42mm hole)
Includes: Panel mount (42mm hole), Hand Knob, Pressure Scale, Nut and DIN Plug connector for both Normally Open or Normally Closed electrical connection.
Capacity: 110 ~ 250 VAC @ 0.5Amp or 12 ~ 24VDC @ 1Amp
Surge Pressure: 400Bar
Design Number: 30B80
Connection Port 1/4″ BSP Female = G04F
Mounting Position is unlimited
Material: Body is Cast Iron, Element Steel
Construction position: Position type, spring loaded
No drain line
Long service life
Recommended max operations 20 per minute.
Compact and robust with direct pressure read out.
Fixed differential switches only have one adjustment. This sets the pressure at which the switch must switch. When pressure has dropped to by +/- 10% it will switch back again. You cannot adjust this differential.
Other Known codes: DNF-360K-30B, PS-DNF360K30, DNF-360K, DNF360K
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
