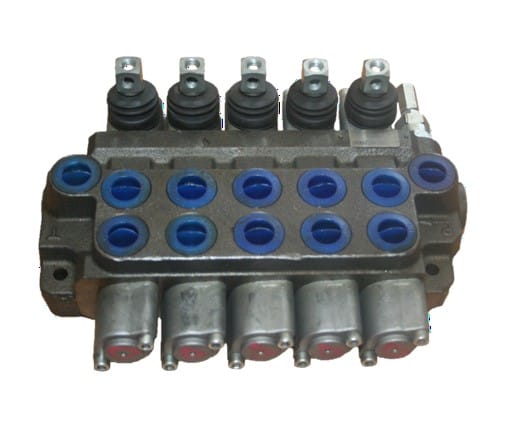

DN 5-Bank Monoblock Directional Valve

SKU: DI-DN5
bondiolio

DINOIL DN Series Monoblock 5Lever Directional Valve, Double Acting Spool, 6 ports, 1/2″ BSP

Web Price:

Original price was: R22,655.00.Current price is: R18,124.00.

Stock:

Enquire on ETA

  • Returns/Exchanges*
  • Delivery in 24 - 72 Hours*
  • Manufacturer's Warranty

About This Item

DN 5Bank/Lever Monoblock Directional Valve

  • DINOIL
  • DN Series
  • Monoblock Directional Lever Valve
  • 5 Bank/Levers
  • 1/2″ BSP = G-08
  • Double Acting Cylinder Spool
  • 45Lpm
  • 300Bar
  • 6 Ports
  • P to T, A&B blocked in Neutral
  • Power Beyond: Add Power Beyond Sleeve
  • Closed Centre: Add PB sleeve and plug it with VSTIR-1/2
  • Valve Body can handle 300Bar, but standard relief valves adjustable 70-210bar, all valves are spring centered.

View our Full Range of Monoblock Lever Control Valves & Spares HERE

Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.

Spec/Additional Data Sheet

 DN 3-4-5-6 Specs
