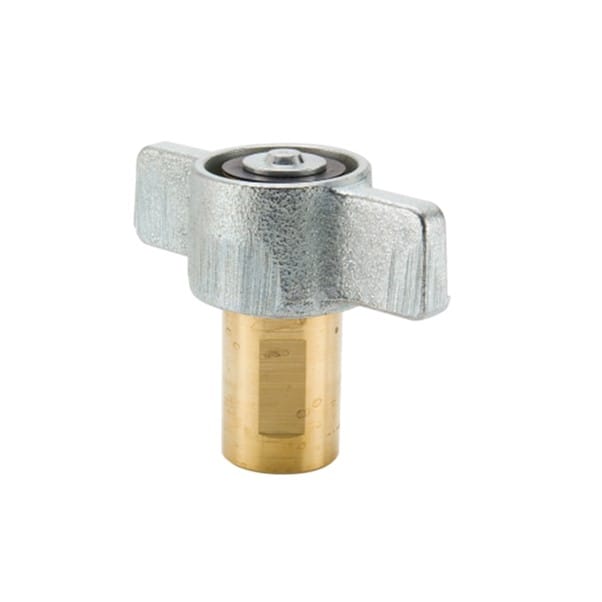

6100 Series 1 1/4″ (-20) Wingnut Coupler Body with 1 1/4″ (-20) NPTF Female Thread – Brass Body – Steel Wingnut
Hydraulic Quick Coupler Brass Body with Heavy Duty Steel Wingnut Sleeve
Connect Under Pressure
Equivalent to Parker 6125-20
Flush Valves – High Flow
Body Size: 1 1/4″
Thread Size: 1 1/4″-11 1/2 NPTF Female
Temperature Range: -30°C to +93°C
Pressure Rating: 2750Psi – 190Bar
Rated Flow: 76gpm
6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body indicates when the connection is complete and the valves are fully open.
Features:
Rated pressures up to 3000 psi
Thread to connect operation
Bonded valve seal stays in place under full pressure connect and disconnect
Visual connection indicator
Standard end configuration is female pipe thread
Applications:
Submersible pumps, Oil field equipment, Dump trailers, Engine test stands, Bulk liquid transfer
NPTF Stands for: National Pipe Taper Fuel (NPTF), also called Dryseal American National Standard Taper Pipe Thread, defined by ASME B1. 20.3, designed to provide a more leak-free seal without the use of PTFE tape (aka “Teflon”) or other sealant compound. NPTF can be used with normal NPT.
Other know codes: Q-6125-20, 6125-20
