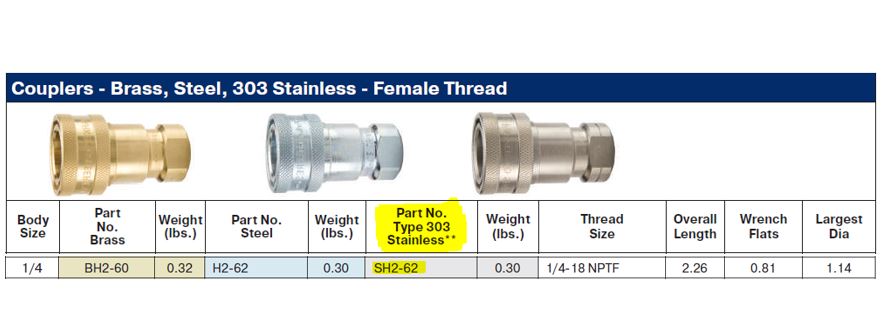

60 Series 1/4″ (-04) Female Coupler Body with 1/4″ (-04) NPTF Female Thread – 303 Stainless Steel
Hydraulic Multi Purpose Quick Couplers
Equivalent to Parker SH2-62
ISO 7241 – B Series
Manual Sleeve – Poppet Valve – Pin Type
Double Shut-Off
Body Size: 1/4″
Thread Size: 1/4″-18 NPTF Female
Temperature Range: -4°C to +121°C
ANSI/ISO Pressure Rating: 2000Psi – 138Bar
Low Cycle, Non-pulsating Pressure Rating: 5000Psi – 345Bar
Vacuum Data: 27.4 inches Hg (-0.9 Bar) both connected and disconnected.
Rated Flow: 3gpm
60 Series double shut-off couplings are versatile for use across a spectrum of hydraulic applications where fluid lines require connection and disconnection.
Features:
Accepts ISO 7241-1, Series B compliant nipples/inserts.
Poppet valves along with a metal to metal valve stop maintains valve alignment and prevents flow checking.
Steel, brass, and stainless steel material options.
Brass couplers have double O-rings and stainless steel locking balls.
Steel coupler sleeve and steel nipple body are hardened to be wear resistant.
Standard end configurations include female pipe.
Applications:
Industrial hydraulic lines
Food and chemical processing
Water and coolant lines
Mobile equipment
May be used with some gases
NPTF Stands for: National Pipe Taper Fuel (NPTF), also called Dryseal American National Standard Taper Pipe Thread, defined by ASME B1. 20.3, designed to provide a more leak-free seal without the use of PTFE tape (aka “Teflon”) or other sealant compound. NPTF can be used with normal NPT.
Other know codes: Q-SH2-62, SH2-62
