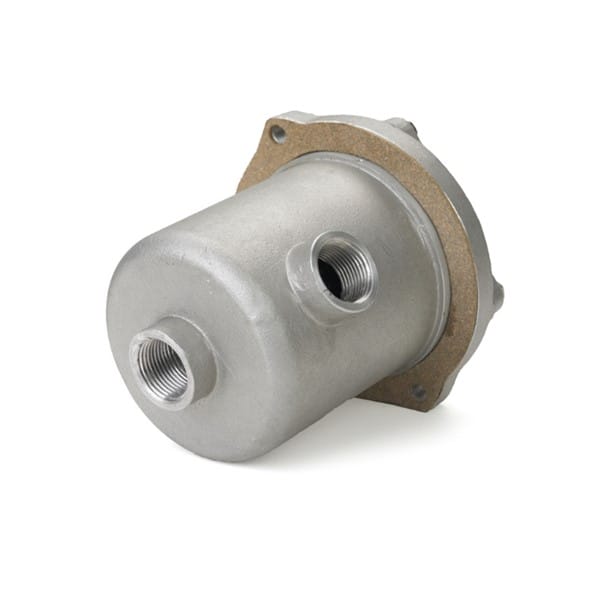

3/4” BSP Under Tank Lid Return Line Filter – 10Mic Reinforced Paper Nom – 45Lpm
Under Tank Lid Return Line Filter – Complete
UCF Series – FAR Series
Also known as FAR.10
2 Fixing Bolt Holes
Bolt Hole Size: Ø9.5mm
Inlet Port Size: 3/4″ BSPP | G-12
Bolt Centre Diameter: 100mm
Full Length: 125mm
Filter Indicator Port Size: 1/8” BSPP | G-02
Outlet Size: 3/4” BSPP | G-12
Penetration Spigot Width (excluding Inlet port): 88mm
Filter Element: 10µ Reinforced Paper nom
Flow Rate: 45Lpm
Filter Indicators sold separately!
Return Line Filter Indicator Gauge to be used: PG-FILTER-R
Replacement Element to be used: FI-RTFE-0610
Fluid Compatibility:
Mineral oil HH-HL-HM-HR-HV-HG
Synthetic fluids HS-HFDR-HFDU-HFDS
Technical features:
Cover: Aluminium die-casting
Filter Body: Aluminium die-casting
By-pass valve: Standard opening 1.7Bar (return)
Seals: Buna-N standard
Operating Temperature: -25°C to +110°C
Operating Pressure: 15Bar
Burst Pressure: 45Bar
Element collapse pressure: 10Bar
Tested according standards: ISO 2941 / ISO 3724 / ISO 3968
UCF Series – FAR Series Under Tank Lid filters are directly assembled on hydraulic tank covers, to clean fluid by contamination deriving from previous work on system components.
Other known codes: FI-UCF-03410, FAR.10KNR, FAR.10
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
