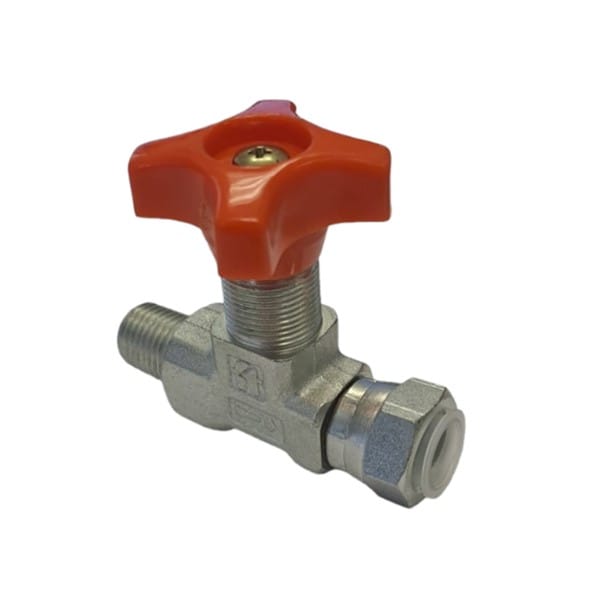

Flow Control Valve – 2Port G04 Gauge Isolator Valve In-Line / In-Line Needle Valve with Handwheel
Flow Control Valve
Also known as Gauge Isolator 3Port no venting G04, In Line Gauge Isolator, In Line Needle Valve with Handwheel
No Venting
2 Ports G04 = 1/4” BSP
With Swivel nut for manometer direction during mounting
With Viton Seals
Complete with locknut
Includes handwheel
Max Working Pressure: 400Bar
Temperature: -20° to +100°
Valve Body: Carbon Steel
Needle: Steel
Gaskets: Standard NBR
Anti Extrusion Ring: PTFE
Know Type MP: Nylon 66
These Isolator Valves are normally used to protect the pressure gauge as they have the double function of dampening pressure shock, when opening and of isolating it entirely. Molded in high-resistance steel. A rotating swivel nut allows the user to plug the manometer, directing it to the more suitable position, with a single blocking operation. The sealing, supplied as stand, and inserted in the nut, prevents any leakage between the connection and the gauge. For pressure gauge with taper threads, it will be necessary to use copper washers.
Other known codes: PG-GI-04, FT 290, FT-290, FT 290-01, FT-290-01
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
