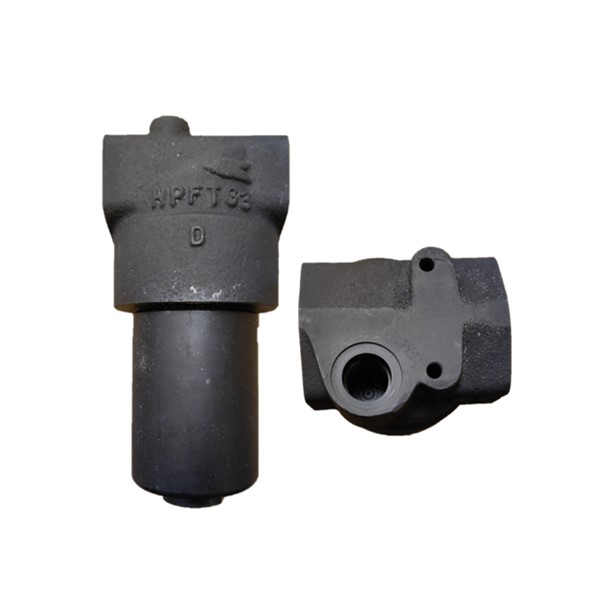

1″ BSP G-16 High Pressure Filter Complete
High Pressure Filter Complete with F10 10µm Microfiber Element
For In-line High Pressure Hydraulic Circuit Mounting
HPF Series – HPF60 Series
Filter also known as HPF 602
Port Size: 1″ BSPP | G-16
Filter Indicator Port Size: 1/8” BSPP | G-02
Mounting Bolt Holes Size: M8
By-pass/Check Valve: 6Bar at ±10%
Seals: Standard Buna-N
Element: F10 – 10µm Microfiber
Operating Temperature: -20°C to +95°C
Max Working Pressure: 420Bar
Flow Rate: 115Lpm
Peak Pressure: 600Bar
∆P Caruccia: 20Bar
Indicators sold separately!
Filter Indicator Gauge to be used: FI-HPV
Electrical Filter indicator to be used: FI-HPVE
Filter Element/Cartridge needed is FI-HPFE-16
HPF Series Filters are used in-line (pressure) mounting on medium and high pressure hydraulic circuit (from 110 up to 420 bar), to protect system’s components from contamination. This kind of filters is essential on sophisticated hydraulic systems capable of high performances, for which it is necessary to guarantee maximum protection for sensitive components, downstream the filter. It is a very versatile series of filters, designed for various applications: tools, agricultural and earthmoving machines, industrial vehicles, mobile and stationary applications in general.
Other known codes: FI-HPF-16, HPF602F10ANR, HPF 602 F10 A N R
