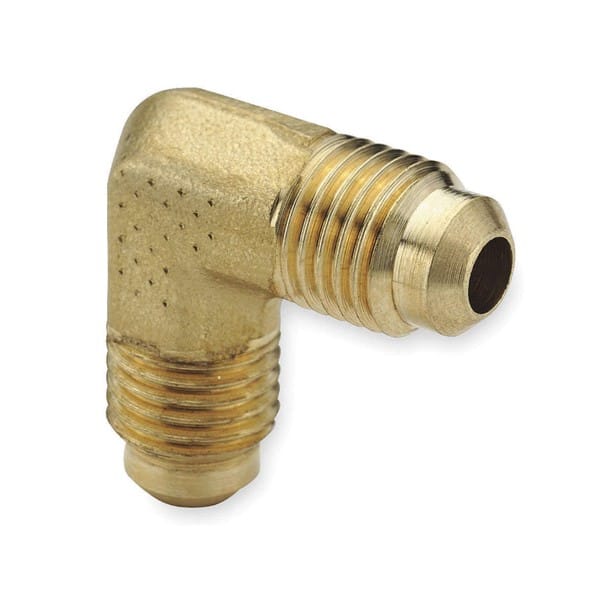

1/4″ SAE Male x 1/4″ SAE Male 90° Elbow – Low Pressure Brass Adapter
Side 1 I.D. Tube Size: -04 | 1/4″
Side 1 Thread: SAE Male
Side 2 I.D. Tube Size: -04 | 1/4″
Side 2 Thread: SAE Male
Brand: Parker Low Pressure Brass Adapters
Connection Type: 45° Flare SAE Male 90° Elbow
Operating Temp: -54°C to +121°C
Max Operating Pressure: 97Bar / 1400Psi
Tube Material: Copper, Aluminium, Brass, Steel Tubing that can be flared 45°
Operating Fluid: Water, Air, Insert and non-combustible gasses, materials for construction, Flammable liquid and Freon
Application: Air lines, Lubrication lines, Refrigerant lines, Machinery, Compressors, Fluid transfer, Flammable liquid, Marine
Markets: Refrigeration, Heavy duty trucks, Mobile, Industrial, Air Conditioning, Construction
Product Features: All Brass (CA360 or CA345 Brass) Body Construction, Viton O-Ring
Meets Functional Requirements: SAE J512 and SAE J513
Ref: SAE 010201
Parker’s 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the Body makes for extreme dependability and Safety. Flare fittings are appropriate alternatives for solder Type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications.
Known codes: LB-155F, 155F, B074PV8CW, 2P169, PAR155F, 55-, 55R-, 468140000
