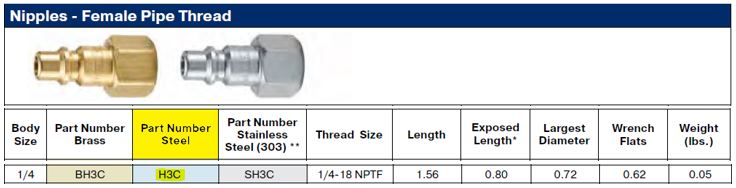

20 & 30 Series 1/4″ (-04) Insert with 1/4″ (-04) NPTF Female Thread – Carbon Steel Insert
Pneumatic Quick Coupling
Equivalent to Parker H3C
Industrial Interchangeable Insert
A-A-59439, MIL-C-4109F Design
Non-Valved
Insert Size: 1/4″
Thread Size: 1/4″-18 NPTF Female
Temperature Range: -4°C to +121°C
Rated Pressure: 300psi / 20Bar
Industrial Interchange Nipples are compatible for use with 20 Series, 30 Series, Rectus 21, 23, 30 Series, Universal or E-z-mate couplers. The standard male tip of the pneumatic industry, these nipples are interchangeable with similar nipples manufactured to the same requirements.
Features:
Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) requirements for global interchangeability.
Steel nipples have hardened wear points and load-bearing areas.
Un-valved style nipple mates with valved couplers.
Applications:
Air compressors, Pneumatic tools, Drop-down air lines
The coupler half contains a shut-off valve that is automatically opened when a mating nipple is inserted and automatically closed when the nipple is removed.
NPTF Stands for: National Pipe Taper Fuel (NPTF), also called Dryseal American National Standard Taper Pipe Thread, defined by ASME B1. 20.3, designed to provide a more leak-free seal without the use of PTFE tape (aka “Teflon”) or other sealant compound. NPTF can be used with normal NPT.
Other know codes: Q-H3C, H3C
