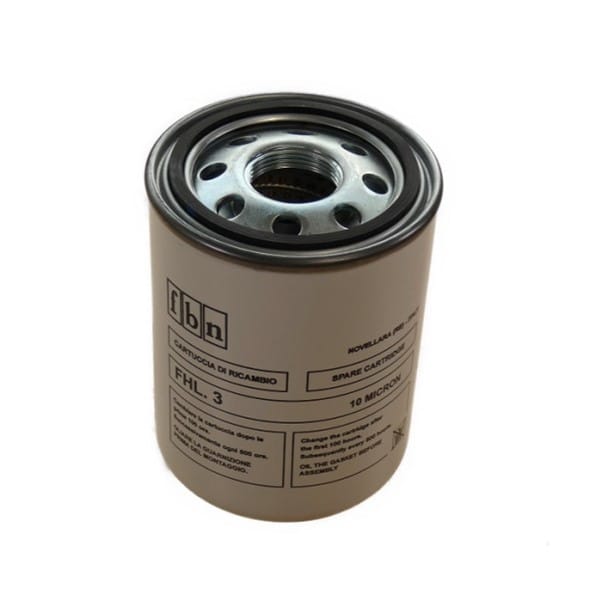

SOE Series FHL.3M10 (10mic) Spin On Element Filter 1 1/4″ BSP G-20
Spin On Element/Cartridge Filter
For In-line Low Pressure Hydraulic Circuit Mounting
Note: The Heads and Elements are sold separately!
SOE Series – Series HL 303
Element also known as FHL.3M10
To be used with SOH10-R (Return) or SOH10-S (Suction) Filter Heads
M10 – 10 Mic nom Flow Rate: Suction 115Lpm | Return 290Lpm
Port Size: 1 1/4″ BSPP
Full Length: 182mm
Outer Diameter: 128mm
Spin On Element: Galvanized Steel Structure
Element Composition: M10 – 10µm Paper nom
Element Collapse Pressure: 5Bar
Standard: ISO 2941, ISO 3724, ISO 3968
Fluid Compatibility:
Mineral oil HH-HL-HM-HR-HV-HG
Synthetic fluids HS-HFDR-HFDU-HFDS
SOE / HL series filters are used in-line mounting on low pressure hydraulic circuit, to protect the pump and system components from contamination. These filters are used in suction line, while the spin-on filters (disposable) SOE/HL series are used on both suction and return line. It is a very versatile series of filters, designed for various applications: tools, agricultural and earthmoving machines, industrial vehicles and mobile applications in general. There are several models to meet all needs, from small to large flows, with different filter elements in order to ensure maximum protection to the circuit.
Other known codes: FI-SOE10-010, FHL.3M10, FHL.3, SOE1010
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
