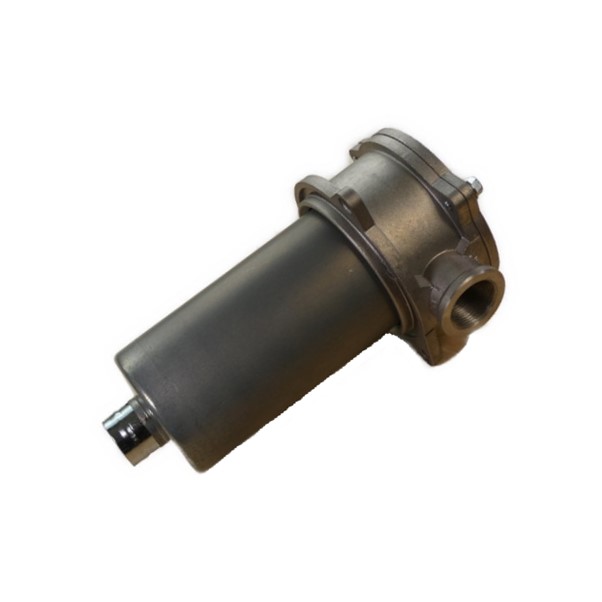

Tank Top Return Line Filter – Complete – 1 1/4″ BSP – 3Hole – 10Mic – 120Lpm
Tank Top Return Line Filter
RTF Series – SIF Series
Also known as SIF.25D10
3 Fixing Bolt Holes
Bolt Hole Size: 11mm
Inlet Port Size: 1 1/4″ BSPP | G-20
Bolt Centre Diameter: 175mm
Full Length: 314mm
Filter Indicator Port Size: 1/8” BSPP | G-02
Outlet Barb Width: 40mm
Penetration Spigot Width: 129mm
Filter Element: 10µ Paper nom
Filter Indicators sold separately!
Return Line Filter Indicator Gauge to be used: PG-FILTER-R
Electrical Return Line Filter indicator to be used: FI-FI-E-02
Replacement Element to be used: FI-RTFE-1810
Fluid Compatibility:
Mineral oil HH-HL-HM-HR-HV-HG
Synthetic fluids HS-HFDR-HFDU-HFDS
Technical features:
Head & Cover are aluminium die-casting
Filter bowl: Galvanized Steel
Filter Element: 10 Micron nom Paper
By-pass valve: Standard opening 1.7bar
Seal: Standard BUNA-N
Flow Rate: 120Lpm
Operating Temperature: -25°C to +110°C
Operating Pressure: 3Bar / 30Lpm
Burst Pressure: 10Bar
Tested according standards: ISO 2941 / ISO 3724 / ISO 3968
SIF Series – RTF Series Tank Top filters are directly assembled on hydraulic tank covers, to clean fluid by contamination deriving from previous work on system components.
Other known codes: FI-RTF-1810, SIF.25DM10C, SIF.25D10, SIF.25D
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
