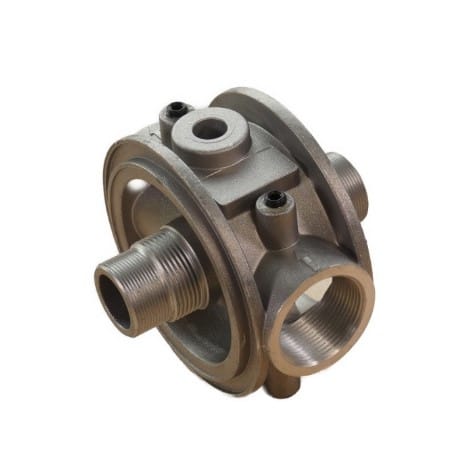

SOH Series THL.30ST2 Spin On Return Line Opposite Dual Filter Head 1 1/2″ BSP G-24
Opposite Dual | Opposed Double Cartridge Spin On Filter Head
For In-line Low Pressure Hydraulic Circuit Mounting
Note: The Heads and Elements are sold separately!
SO Series – Series HL | THL
Filter Head also known as THL.30ST2
Port Size: 1 1/2″ BSPP | G-24
Filter Indicator Port Size: 1/8” BSPP | G-02
Filter Element Thread 1: 1 1/4” BSPP | G-20
Filter Element Thread 2: 1 1/2″-16 UNF
Mounting Bolt Holes Size: M10
By-pass/Check Valve: 1.7Bar on Suction line
Filter Head: Aluminium Die-casting
Seals: Standard Buna-N
Operating Temperature: -30°C to +110°C
Operating Pressure: 12Bar
Burst Pressure: 25Bar
Element Collapse Pressure: 5Bar
Standard: ISO 2941, ISO 3724, ISO 3968
Filter Indicators sold separately!
Filter Indicator Gauge to be used: PG-FILTER-R (Return)
Electrical Return Line Filter indicator to be used: FI-FI-E-02
Filter Element/Cartridge needed is FI-SOE10
Fluid Compatibility:
Mineral oil HH-HL-HM-HR-HV-HG
Synthetic fluids HS-HFDR-HFDU-HFDS
Other known codes: FI-SOH1012-R-DO, THL.30ST2, SO10R
