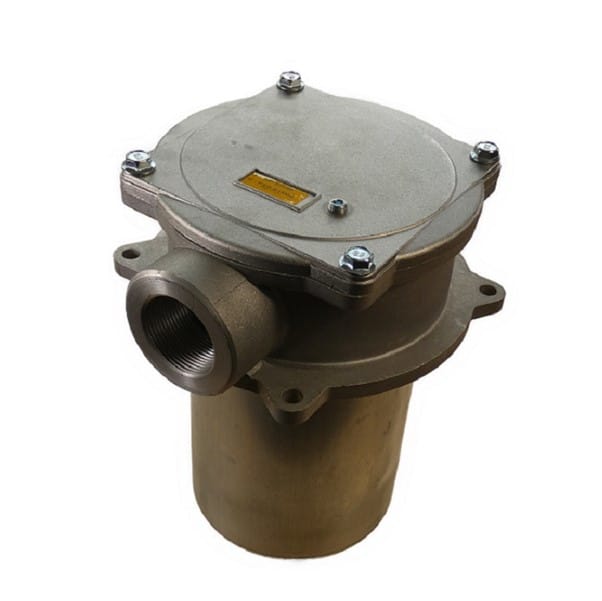

Tank Top Return Line Filter – Complete – 1 1/2″ BSP – 4Hole – 10Mic – 200Lpm
Tank Top Return Line Filter
RTF Series – SIF Series
Also known as SIF.30F10
4 Fixing Bolt Holes
Bolt Hole Size: 11mm
Inlet Port Size: 1 1/2″ BSPP | G-24
Bolt Centre Diameter: 220mm
Full Length: 330mm
Filter Indicator Port Size: 1/8” BSPP | G-02
Outlet Barb Width: 50mm
Penetration Spigot Width: 173mm
Filter Element: 10µ Paper nom
Filter Indicators sold separately!
Return Line Filter Indicator Gauge to be used: PG-FILTER-R
Electrical Return Line Filter indicator to be used: FI-FI-E-02
Replacement Element to be used: FI-RTFE-3310
Fluid Compatibility:
Mineral oil HH-HL-HM-HR-HV-HG
Synthetic fluids HS-HFDR-HFDU-HFDS
Technical features:
Head & Cover are aluminium die-casting
Filter bowl: Galvanized Steel
Filter Element: 10 Micron nom Paper
By-pass valve: Standard opening 1.7bar
Seal: Standard BUNA-N
Flow Rate: 200Lpm
Operating Temperature: -25°C to +110°C
Operating Pressure: 3Bar / 30Lpm
Burst Pressure: 10Bar
Tested according standards: ISO 2941 / ISO 3724 / ISO 3968
SIF Series – RTF Series Tank Top filters are directly assembled on hydraulic tank covers, to clean fluid by contamination deriving from previous work on system components.
Other known codes: FI-RTF-3310, SIF.30FM10C, SIF.30F10, SIF.30F
