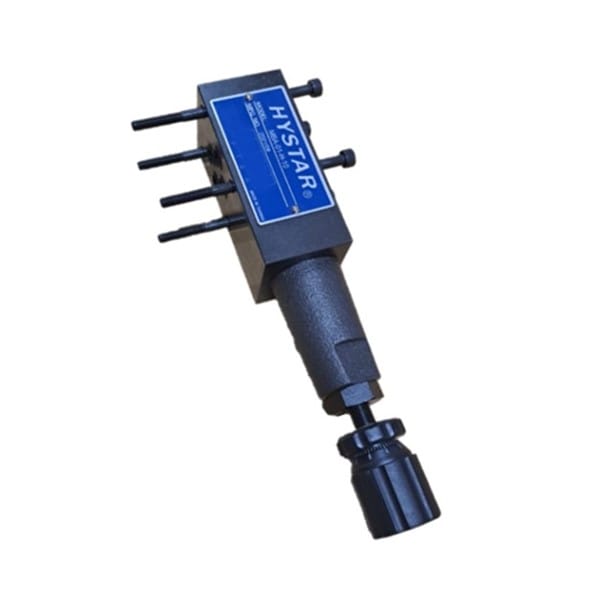

NG6 Cetop3 Sandwich Relief Modular Valve, On A, 70-210Bar
NG6 Relief Modular Valve
Cetop 3 Sandwich Pressure Relief Valve
Control line on A Port
Pressure Adj Range: 70~210Bar
Port Size: 1/8”
Valve Size: (DSG-) 01 (NFPA-D03)
Design No: 20 – DIN 912 Bolts – M5X85LgX4pcs
With Knob
Mounting Surface O-Ring P9 x 2pcs
This balanced piston type relief modular valve is an improved over the conventional type relief valve.
The valve is designed to control the maximum pressure of the hydraulic circuit and also serves as a safety valve.
It can provide normal performance in a wide range of operating pressure from 8 up to 210Bar.
Back Pressure in tank port should be as low as possible (under 5Bar).
In case the valves are used as safety valves, pressure setting should be higher than maximum circuit pressure by 10 ~ 15Bar.
The pressure will be increased when the pressure adjustment handle is turned clockwise, and will be reduced when the pressure adjustment handle is turned counter-clockwise.
Be sure to re-tighten the lock nut firmly after making adjustment to the pressure.
Other known codes: MBA-01-H-20, SV-MBA-01H, MBA01H20, MRV-02/03/04, AM3VMPM, 1010-1028, SV-MBA-01H
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
