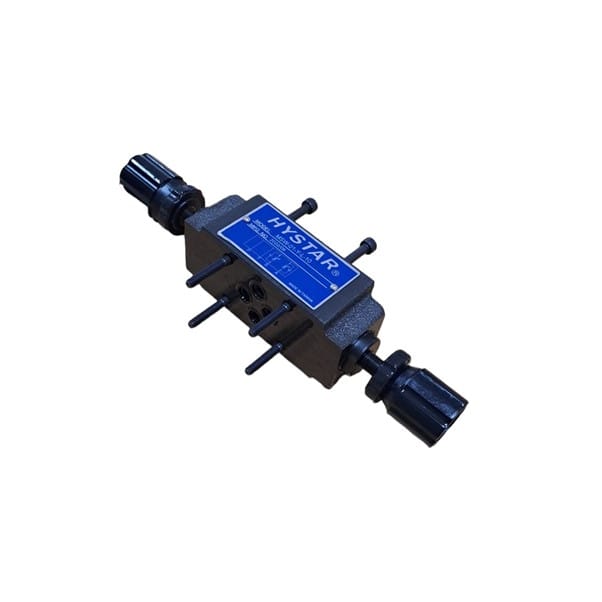

NG6 Cetop3 Sandwich Dual Flow Control plus Check Valve, On A and B, Meter In, 5-50Bar
Dual – Throttle with Check Valve
Type: Dual Sandwich / Modular Control Valve – Spool Type.
Control Line: Port A and B
Valve Size: (DSG-) 01 (NFPA-D03)
Pressure Adj. Range: 5Bar ~ 50Bar – Meter In
Includes Din 912 Bolts
Max Operating Pressure: 250Bar / 3600Psi
Max Flow: 50Lpm / 13.2USgpm
Port Size: 1/8”
Includes a Knob
This Valve is used for actuator speed control.
Clockwise rotation of the adjusting handle knob decreases the flow rate and counter-clockwise rotation increases it.
Since the valve is of the spool type, oil flow cannot be shut off completely.
Cracking pressure of the Check Valve is 0.8Bar.
Other known codes: MSW-01-Y-L-20, SV-MSW-01Y, MSW-01YL20, MSW-01YL
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
