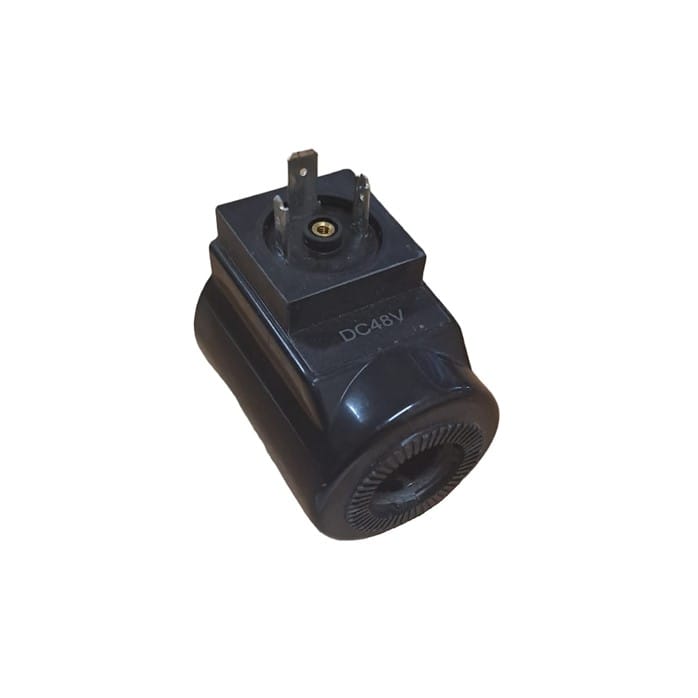

NG6 DC48V Coil for DSG-01-NÂ
Hystar G01002
Cetop3 NG6 48VDC Coil only
For DSG-01-N Solenoid Operated Valves
ID: 19.6mm
OD: 47mm
Length: 58mm
0.6Amps | 26W
Insulation high voltage test: 1500 V/min (1800V/sec)
Double insulation wiring, hermetically sealed for moisture-resistance.
Insulation class H
Max allowed Coil temp 150°C
Do Not exceed permissible voltage range of the coil used
Do Not supply electric power to the AC Solenoid unless the coil is mounted to the valve.
On Double Solenoid valves, do not energize both at the same time as it will result in coils burning out.
DSG-NO1-48VDC
