Male 14 Splined Coupling for Gr2

SKU: BILL-GR2-14T-M
Fluidco

BF2 Male 14 Tooth Splined Coupling/Billet for Gr2 Gear Pumps | Gr2 Side Load Bearing & ML32 Gearbox | OD 24.5mm | ID 1:8 Taper 14.3mm

Web Price:

Original price was: R483.00.Current price is: R386.40.

Stock:

10 in stock

  • Returns/Exchanges*
  • Delivery in 24 - 72 Hours*
  • Manufacturer's Warranty

About This Item

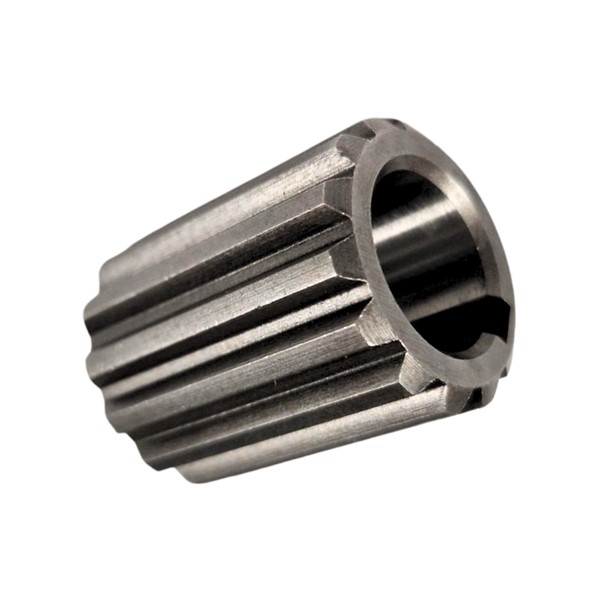

Male 14 Tooth Splined Billet/Coupling for Group 2 Side Load Bearing and ML32 Gearbox

Manufacturer Code: BF2
Group 2 Male 14 Tooth Splined Billet/Coupling
BF Series Male Splined Coupling | Model BF2
To Fit: Group 2 SLB (Side load bearing) and ML32 Gearbox
Outer Diameter: 24.5mm
Inner Diameter: 1:8 Taper 14.3mm
DIN 5482
Number of teeth: 14
Pump Group: Group 2 unified gear pumps
Torque: 20Nm
Body Material: Allowed Steel with thermal treatment

Known codes: BILL-GR2-14T-M, BF2, 31007000

PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING.  YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
