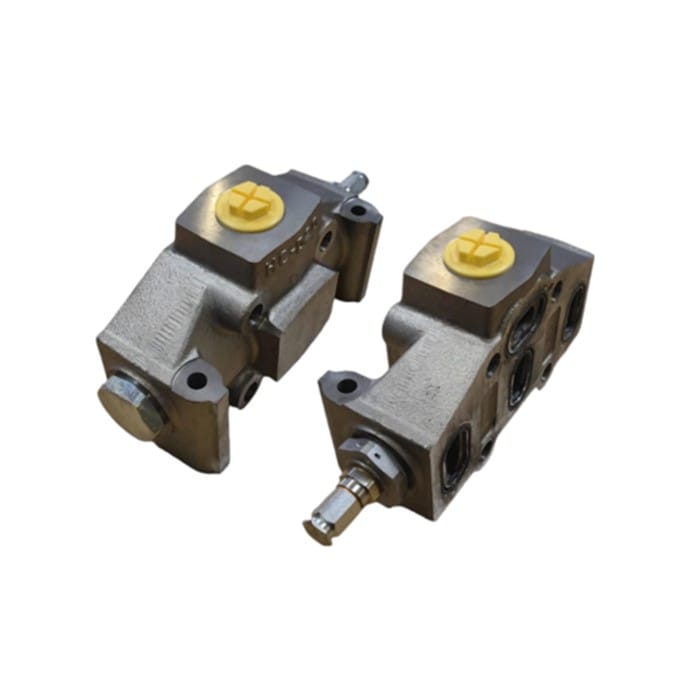

HC-D20 Left Upper 1″ Inlet Section with Relief

SKU: HC-D20-I
Hydro Control

HC-D20 Series Sectional Valves | Left Inlet Section | Upper Inlet Position | 1″ BSP -G16 | 250Lpm 345Bar | incl. Pilot Operated Pressure Relief Valve

Web Price:

Original price was: R16,675.00.Current price is: R13,340.00.

Stock:

2 in stock

  • Returns/Exchanges*
  • Delivery in 24 - 72 Hours*
  • Manufacturer's Warranty

About This Item

HC-D20 Series Sectional Valves – Left Inlet Section – Upper Inlet – 1″ BSP with Type 2 Pressure Relief

HC-D20 Inlet Section with Relief Valve
IL = Left Inlet Section | (P) Inlet Port
Inlet Valve: Type 2 | Pilot Operated Pressure Relief Valve
Upper Inlet Position
Thread Type: HC-D20 A G06
Inlet (P) Port: 1″ BSP | -G16
Parallel Circuit
Standard Working Conditions Spec
Flow Rate: 66Gpm
Pressure Rate: 5000Psi | 345Bar
Max Flow: 250Lpm
Max Pressure on (T): 290Psi | 20Bar
Operating Temp: -25°C to +80°C
Kinematic Viscosity: from 10 – 460 mm²/S
Contamination Level: 19/16 ISO 4406
Filtration Level: β 10 > 75
To be used with HC-D20-W-PR and HC-D20-O Outlet Section

Other known codes: HC-D20-I, HC-D20 IL 2 A G06, HC-D20-IL-2-A-G06

PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING.  YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.

Items in stock may sometimes differ slightly from those in the pictures, depends on what manufacturer sends, but they are functionally the same.

Downloadable Additional Data

  HC-D20 Valves Additional Data
