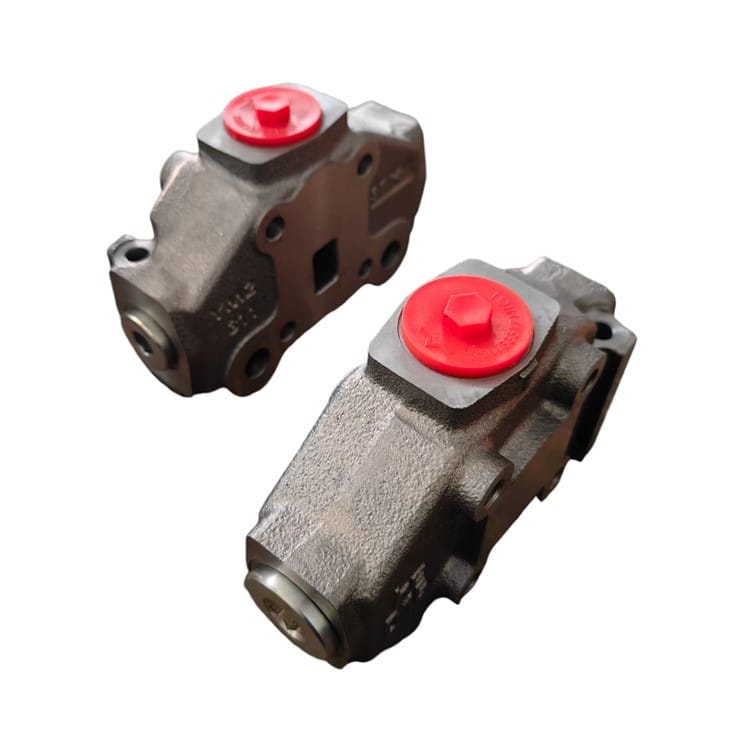

HC-D16 Series Sectional Valves – Upper Outlet Section with Single Return (T) Left-Side Inlet (P)
HC-D16 Outlet Section with Single Return (T) Left-Side Inlet (P)
Outlet with Single Tank Classification
Outlet on (T) and Inlet on (P)
T Port Sizes: 1” BSP | -G16
Outlet Position: Upper Outlet – HC-D16 TK A G06 (= 1″ BSP)
HPCO Upper Outlet – 2 Returns/ Tanks options available by adding 2 Power Beyond plugs
HPCO = High Pressure Carry Over
HC-D16-PB-Plug is the Power Beyond code
Standard Working Conditions Spec
Flow Rate: 40Gpm
Pressure Rate: 5000Psi | 345Bar
Max Flow: 150Lpm
Max Pressure on (T): 290Psi | 20Bar
Operating Temp: -25°C to +80°C
Kinematic Viscosity: from 10 – 460 mm²/S
Contamination Level: 19/16 ISO 4406
Filtration Level: β 10 > 75
To be used with HC-D16-I Inlet Section and either HC-D16-W-PR / HC-D16-W-HYD Outlet Sections
Other known codes: HC-D16-O, HC-D16 TK A G06, HC-D16-TK-A-G06
