G04 Needle Valve

SKU: FC-NV-04S
MTC

G04 = 1/4″ BSP Female Flow Control – Needle Valve

Web Price:

Original price was: R914.25.Current price is: R731.40.

Stock:

6 in stock

  • Returns/Exchanges*
  • Delivery in 24 - 72 Hours*
  • Manufacturer's Warranty

About This Item

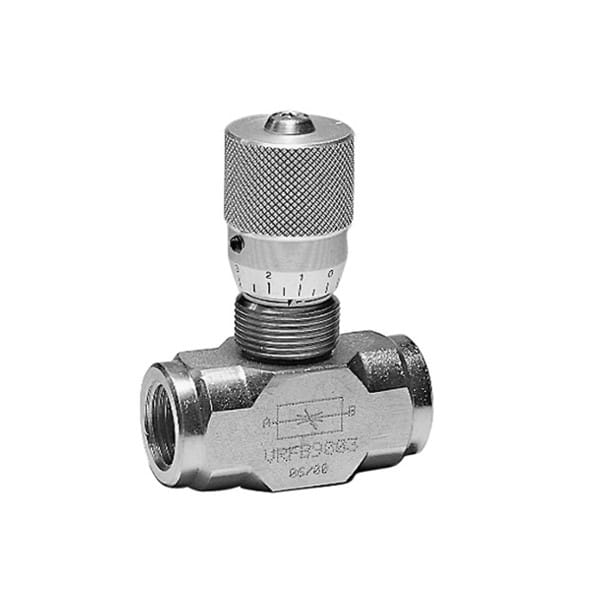

1/4″ Flow Control – Needle Valve

VRFB90 Series
Type:  Flow Control Valve
90° Bidirectional Flow Regulator
Needle Valve
Port A Thread: 1/4” Female BSP = G04
Port B Thread: 1/4” Female BSP = G04
Max Flow: 30L/min
Max Pressure: 350
Application
These valves are used to adjust flow speed in both directions. Good quality graduated adjustment.
Installation
Connect the actuator port to control with valve port.
Operation
Pressure flow goes into A valve port and goes out from B valve port and vice versa. To adjust the flow screw out the stop socket screw and turn the hand-knob in the desired direction slowly.  Screw down the stop socket screw to maintain the settings also in case vibrations occur.
Features
Steel body
Zinc plated steel body
No leakage

Other know codes: H10/0, VRFB90-01-G, VRFB90-01, FC-NV-04S,FCG14N, SB-, FRB-, V0586, BD-G1/4-CS, STBF140

Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.

Spec/Additional Data Sheet

  FC-NV Additional Data

Have A Question

For any enquiries about this product:

EMAIL: Click Here
PHONE: Call
WHATSAPP: Click Here

How long does delivery take?

We use The Courier Guy for all our deliveries. It takes on average between 24 - 72 hours depending on delivery address.

Do you only deliver within South Africa?

Yes, we only deliver within South Africa. You are welcome to send your own courier to collect if you are not within South Africa as we do have a exporters number.

Payment information?

Customers can make payment via Payfast. Payfast is one of the largest payment gateways in South Africa. Through PayFast we offer safe and secure payment methods from which you can select: Visa & Master Card payments, Instant EFT and Mobicred.

Do we do refunds?

Please see our Delivery and Return Policy

Can I collect my order?

Please see our Delivery/Collection Policy

1/4″ Flow Control – Needle Valve

VRFB90 Series
Type:  Flow Control Valve
90° Bidirectional Flow Regulator
Needle Valve
Port A Thread: 1/4” Female BSP = G04
Port B Thread: 1/4” Female BSP = G04
Max Flow: 30L/min
Max Pressure: 350
Application
These valves are used to adjust flow speed in both directions. Good quality graduated adjustment.
Installation
Connect the actuator port to control with valve port.
Operation
Pressure flow goes into A valve port and goes out from B valve port and vice versa. To adjust the flow screw out the stop socket screw and turn the hand-knob in the desired direction slowly.  Screw down the stop socket screw to maintain the settings also in case vibrations occur.
Features
Steel body
Zinc plated steel body
No leakage

Other know codes: H10/0, VRFB90-01-G, VRFB90-01, FC-NV-04S,FCG14N, SB-, FRB-, V0586, BD-G1/4-CS, STBF140

Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
