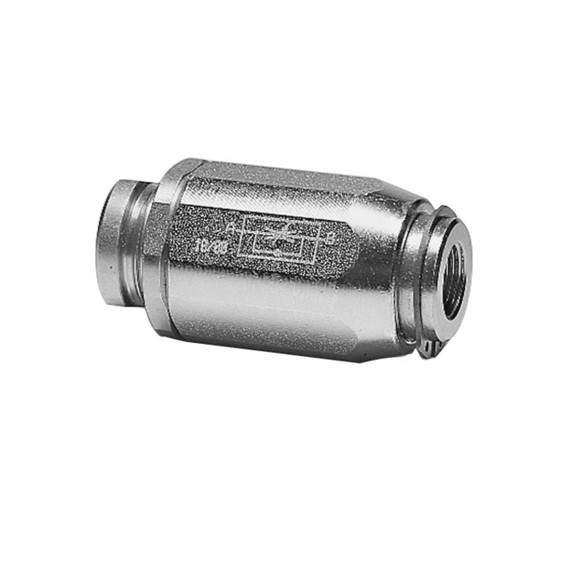

1/4″ Barrel Type Flow Control with Check Valve
VRF Series
Barrel Type Flow Control Valve
Flow Regulator with Check Valve Ball Type or Poppet Type
Needle Valve with Reverse Flow Check Valve
Port A Thread: 1/4” Female BSP = G04
Port B Thread: 1/4” Female BSP = G04
Max Flow for Poppet Type from port B to A: 30L/min
Max flow for Ball Type from port B to A: 12L/min
Max Flow from port A to B: 30L/min
Cracking Pressure for Poppet Type: 0.5Bar
Cracking Pressure for Ball Type: 4Bar
Max Pressure: 350
We stock both the ball and poppet type depending on availability. Request a type if relevant on checkout notes.
Application
These valves adjust the flow speed in one direction. In the opposite direction the flow is free.
Installation
Connect the actuator port to control with B valve port and pressure flow with A port.
Operation
When pressure flow goes from A port to B port it adjusts the actuator speed. In the opposite direction from B port to A port the flow is free. To adjust the flow, loosen the stop screw and turn the sleeve in the desired direction. Restore the stop screw position to keep the present valves also in case of vibrations.
Features
Steel body
Zinc plated steel body
Low leakage
Hardened internal components
In case of Ball type do not exceed the indicated flow rate
Other know codes: H30/0, VRF-01-G,VRF01, FC-BTFC-04S, 1603110100, FCCV, V0540
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
