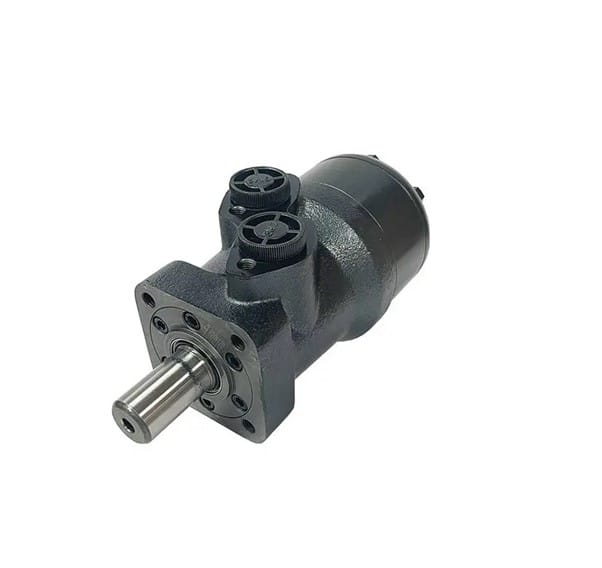

BMR Series 200cc Geroler Gear Type Motor – Ø25.4 Cylindrical Shaft, 4Bolt Small Square Flange
Series: BMR Series
Category: Geroler Gear Type – Hydraulic Orbital Motor
Type: Axil Distribution Motors
Geometric Displacement (cm³/rev.): 194.50cc
Flange H5: 4-M10 – pilot Ø44.4×2.8
Small 4 Bolt Square Flange
Output Shaft C = Ø25.40, parallel key 6.35×6.35×31.75
Cylindrical Shaft
Manifold Mount: 4-M8
Side Ports: G08 = 1/2” BSP
Drain Port: G04 = 1/4” BSP
Continuous Max Speed: 310rpm
Intermittent Max Speed: 385rpm
Continuous Max Torque: 450Nm
Intermittent Max Torque: 500Nm
Peak Max Torque: 560Nm
Continuous Max Output: 10kW
Intermittent Max Output: 13kW
Continuous Max Pressure Drop: 13MPa/130Bar
Intermittent Max Pressure Drop: 17.50MPa/175Bar
Peak Max Pressure Drop: 22.50MPa/225Bar
Continuous Max Flow: 60L/min
Intermittent Max Flow: 75L/min
Continuous pressure: Max. value of operating motor continuously.
Intermittent pressure: Max. value of operating motor in 6 sec per minute.
Peak pressure: Max. value of operating motor in 0.6 sec per minute.
BMR Series motors adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure. They provide reliable – smooth operation, high efficiency and long life.
Characteristic Features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up.
They provide smooth, reliable operating and high efficiency.
Shaft seal can bear higher pressure of back and the motor can be used in parallel or in series.
Special design in the driver-linker and prolong operating life.
Special design for distribution system can meet the requirement of low noise of unit.
Compact volume and easy installation.
Other known codes: BMR-200-H5-C-D, BMR200-H5-C-D, BMR200H5CD, BMR-200-4S1, OMR-200, OMR 200
