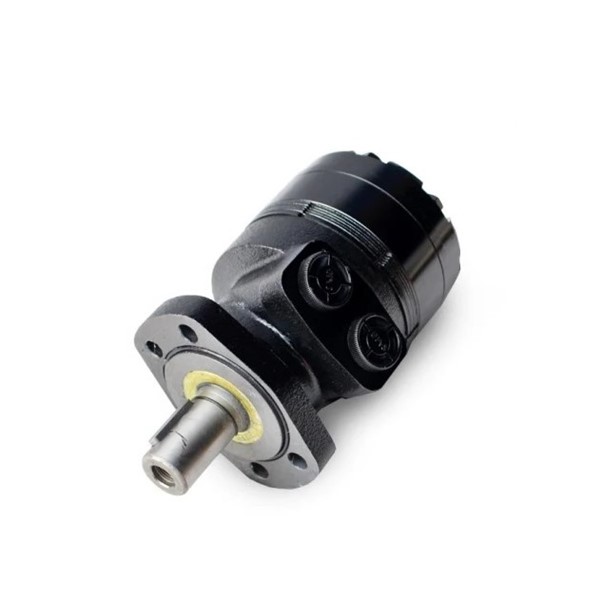

BMER-2 Series 475cc Geroler Gear Type Motor – Ø31.75 Cylindrical Shaft, 2+2Bolt Ø13.5 Magneto SAE-A Flange
Series: BMER-2 Series
These motors are suitable replacements for the White RE type and the Parker TG type motors.
Category: Geroler Gear Type – Hydraulic Orbital Motor
Type: Disc Distribution Motors
Geometric Displacement (cm³/rev.): 462cc
Flange MS: Ø13.50, pilot Ø82.55×2.8
2+2Bolt Magneto SAE-A Flange
Side Ports: 7/8 – 14UNF
Output Shaft G2 = Ø13.75, parallel key 7.9x7x36.5
Cylindrical Shaft
Continuous Max Speed: 160rpm
Intermittent Max Speed: 195rpm
Continuous Max Torque: 1085Nm
Intermittent Max Torque: 1180Nm
Peak Max Torque: 1260Nm
Continuous Max Output: 14.50kW
Intermittent Max Output: 16.50kW
Continuous Max Pressure Drop: 17.50MPa/175Bar
Intermittent Max Pressure Drop: 19MPa/190Bar
Peak Max Pressure Drop: 20.50MPa/205Bar
Continuous Max Flow: 75L/min
Intermittent Max Flow: 90L/min
Continuous pressure: Max. value of operating motor continuously.
Intermittent pressure: Max. value of operating motor in 6 sec per minute.
Peak pressure: Max. value of operating motor in 0.6 sec per minute.
Main Applications: Bulk Feed Trucks and Infeed Rollers
BMER-2 Series motors adapt the advanced Geroler gear set design with disc distribution flow and high pressure. They have good stability in low speed and can keep high volume efficiency.
Characteristic Features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
The output shaft adapts in needle roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.
Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
Lowest leakage rate, most accurate timing methods. Commutator rotates 6x faster than shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume efficiencies and can run very smoothly at low speed, gear box not required.
Other known codes: BMER-2-475-MS-G2, BMER2-475-MS-G2, BMER2475MSG2, TGF-475-22I114, TG-475, RE-475
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
