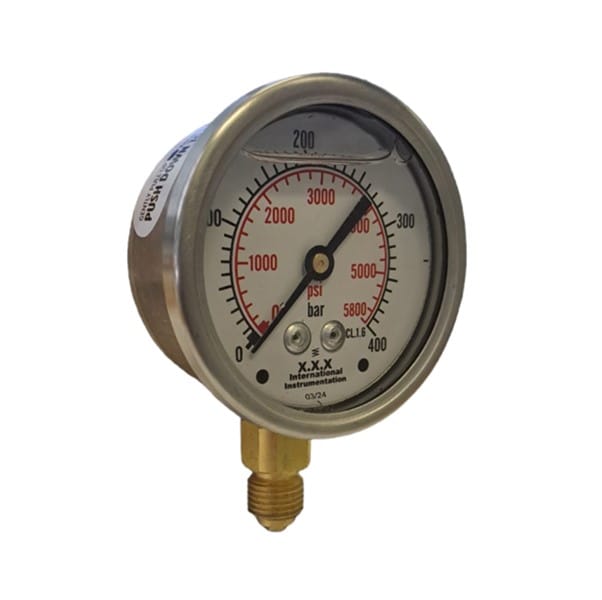

Utility Pressure Gauge – 63mm Series – 400Bar – Bottom Entry – G04
Also known as a Utility Pressure Gauge
Nominal Size: 63mm (2.5”)
Thread Size: 1/4” BSP = G04
Housing: 304 Stainless Steel
Bezel: 304 Stainless Steel
Window: Polycarbonate or safety laminated glass
Wetted Parts: Brass or 316 Stainless Steel (Block and Tube)
Seals: Nitrile
Dial: Aluminium/white background and black numerals
Fill Plug: 2-part Body material (TPV), Plunger pin Material (ABS)
Accuracy: 1.6% FSD
Operating Temp: -25°C to +60°C
Medium Temp: -25°C to +85°C
Storage Temp: -40°C to +85°C
Configuration: A B C D E F U V
Dampening: Glycerine Filled, Silicon Filled
Accreditation: SABS1062
Ingress (Weather Protection): IP67
Pressure Range Brass internals: Vacuum – 0 – 60MPa. Over Pressure limit, 25% FSD for brief periods
Pressure Range SST internals: Vacuum – 1 – 100MPa. Over Pressure limit, 25% FSD for brief periods
The PGB Pressure Gauges are ideal for use on any application, especially those experiencing vibration, pulsation and shock.
A utility gauge is a mechanical device usually used for measuring the pressure of gases or liquids. It consists of a semicircular or coiled, flexible metal tube attached to a connector black. These gauges are commonly used for pumps, compressors, pneumatic systems and others. Moreover, utility gauges are widely used all over the work in industrial environments because of its affordable price.
Other known codes: PGB63-400, PBG-63-400, 111CFL, 111CEL, PBG63_, BSPG, TMP103, M0301, PIS5000, RU40, 1550, MSV, TCL, 3A400G1/4G, THW-SPGO63-
