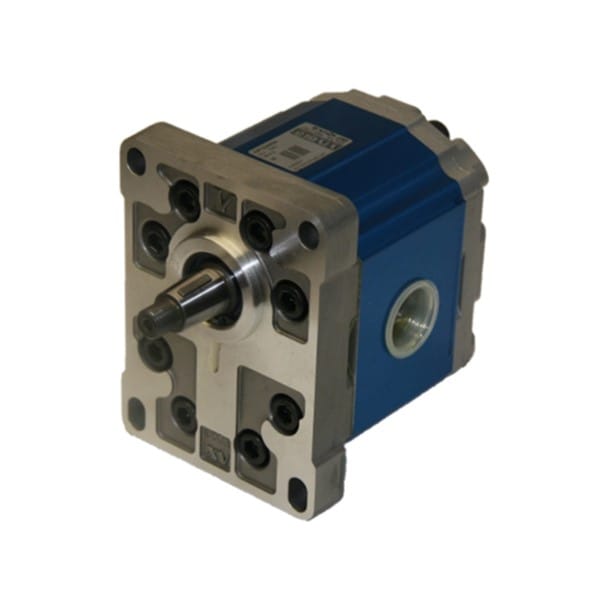

Gr3 Vivoil Vivolo Industrial Aluminium Gear Pump – 38cc – 1″ x 1″ BSP – 250Bar
We recommend using any gear pumps at speed higher than 1000rpm and pressures not exceeding 220bar continuously to ensure longevity.
Series: XV series
Group 3
Type: 38cc
Body: 1” x 1” BSP threaded Ports = G16xG16
Shaft: CO001 – Tapered 1:8 – Ø22 – M14x1.5 – Key thk. 4mm
T.2 [Nm]: 482
Always make sure that the torque applied is less than or equal to the admissible torque of the shaft.
Standard Rotation: Clockwise (Rotation can be converted on request)
Displacement: 38.47 cm³/rev
Max Working Pressure: 250Bar
Max Peak Pressure: 270Bar
Min Speed: 700Rpm
Max Speed: 2800Rpm
Type of fluid to be used: Mineral-based hydraulic oil HLP HV
Recommended Viscosity: 20 mm²/s – 100 mm²/s
Recommended fluid operating temp: 30°C – 50°C
137mm x 98.4mm Mounting
50.8mm Spigot
Constructive Features:
Extruded alloy Series 7000, head treated and anodized
Flange and Cover: Die-Cast aluminium alloy, heat treated and anodized
Gear Bush Bearings: Special heat-treated tin alloy and high anti-friction capacity
Gears: Steel UNI 7846
Seals: A727 Standard Acrylonitrile F 975 Viton FKM
Back-Up Rings: Virgin PTFE, Tecnil Q3
Torque Settings
Rear Bolts: 60Nm
Nut on Shaft: 75Nm Max
Other known codes: X3P7802AEEA, X3P7801AEEA, X3P7802A, VI-XV3P38-CT, XV3P38
