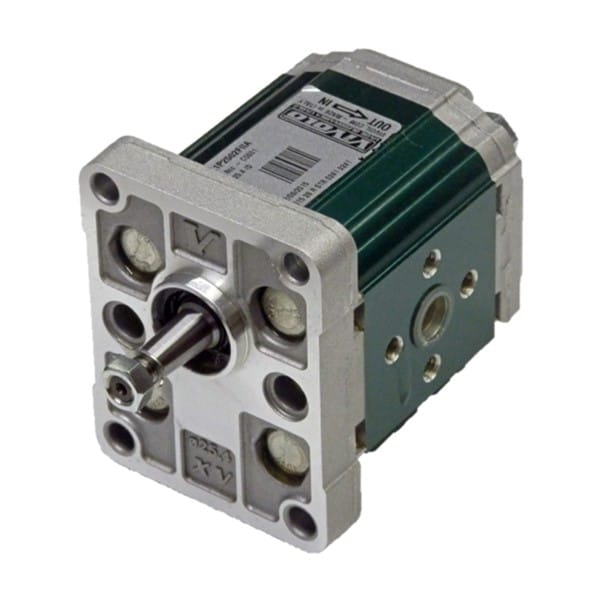

Vivoil Vivolo Industrial Aluminium Gear Pump – 3.2cc – Pcd30x30 – 250Bar
We recommend using any gear pumps at speed higher than 1000rpm and pressures not exceeding 220bar continuously to ensure longevity.
Series: XV series
Group 1 – Italian Style Pumps
Type: 3.2cc
Body: Diamond Flange – Pcd30
Shaft: CO001 – Tapered 1:8 – Ø10 – M7x1 (10 – 8mm over 15mm) – 2.4mm Key
T.2 [Nm]: 43
Always make sure that the torque applied is less than or equal to the admissible torque of the shaft.
Standard Rotation: Clockwise (Rotation can be converted to ACW on request)
Displacement: 3.12 cm³/rev
Max Working Pressure: 250Bar
Max Peak Pressure: 300Bar
Min Speed: 700Rpm
Max Speed: 6000Rpm
Type of fluid to be used: Mineral-based hydraulic oil HLP HV
Recommended Viscosity: 20 mm²/s – 100 mm²/s
Recommended fluid operating temp: 30°C – 50°C
72mm x 52.2mm Mounting
25.4mm Spigot
Constructive Features:
Extruded alloy Series 7000, head treated and anodized
Flange and Cover: Die-Cast aluminium alloy, heat treated and anodized
Gear Bush Bearings: Special heat-treated tin alloy and high anti-friction capacity
Gears: Steel UNI 7846
Seals: A727 Standard Acrylonitrile F 975 Viton FKM
Back-Up Rings: Virgin PTFE, Tecnil Q3
Torque Settings
Rear Bolts: 25-30Nm
Nut on Shaft: 11.5Nm Max
Other known codes: X1P2302FIIA, VI-XV1P3.2-CF, 10C3.25X056, 1PB3.2DP18PO, XP101, IMP2549085, X1P2301FIIA,
