20 Series 1/4″ (-04) Coupler Body with 1/4″ (-04) NPTF Male Pipe Thread
Pneumatic Quick Coupling
Equivalent to Parker B22
Industrial Interchangeable Nipples
Manual Sleeve
Single Shut-Off

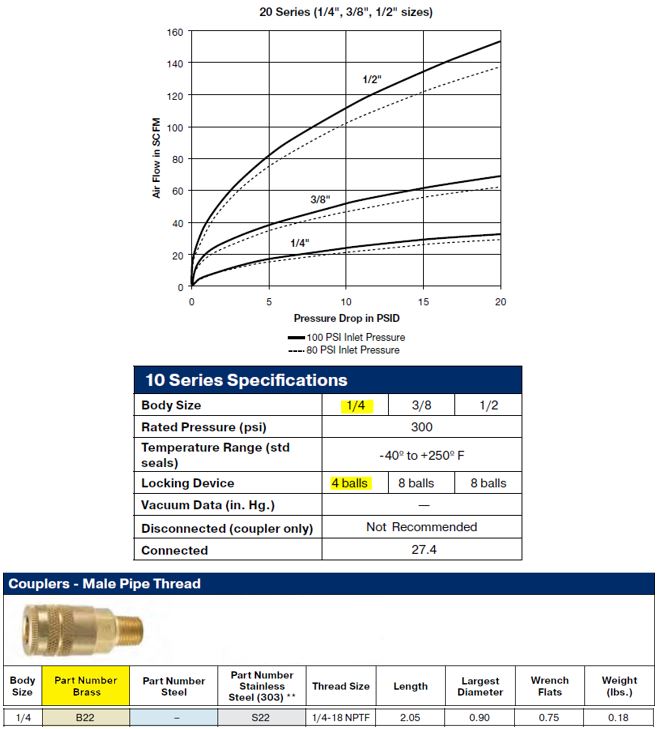

Body Size: 1/4″
Pipe Thread: 1/4″-18 NPTF Male
Temperature Range: -4°C to +121°C
Rated Pressure: 300psi / 20Bar
Locking Device: 4 Balls
Features:
Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards.
1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction.
Tubular valve delivers high flow with minimal pressure drop.
Integral sleeve guard resists accidental disconnection.
Standard Seal is Nitrile
Applications:
Air compressors, Pneumatic tools, Water, Grease, Paint
The coupler half contains a shut-off valve that is automatically opened when a mating nipple is inserted and automatically closed when the nipple is removed.
NPTF Stands for: National Pipe Taper Fuel (NPTF), also called Dryseal American National Standard Taper Pipe Thread, defined by ASME B1. 20.3, designed to provide a more leak-free seal without the use of PTFE tape (aka “Teflon”) or other sealant compound. NPTF can be used with normal NPT.
Other know codes: Q-B22, B22
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
