10 Series 1/4″ (-04) Body with 1/4″ (-04) Push-Lok Hose Barb – Brass
Pneumatic Quick Coupling
Equivalent to Parker B10-3BP
TRU-Flate Design – Automotive Interchange
Manual Sleeve
Single Shut-Off
Body Size: 1/4″ NPTF
Brass Coupler
For Hose with ID: 1/4″
Temperature Range: -4°C to +121°C
Rated Pressure: 300psi / 20Bar
Locking Device: 4 Balls
Features:
Integral sleeve guard resists accidental disconnection.

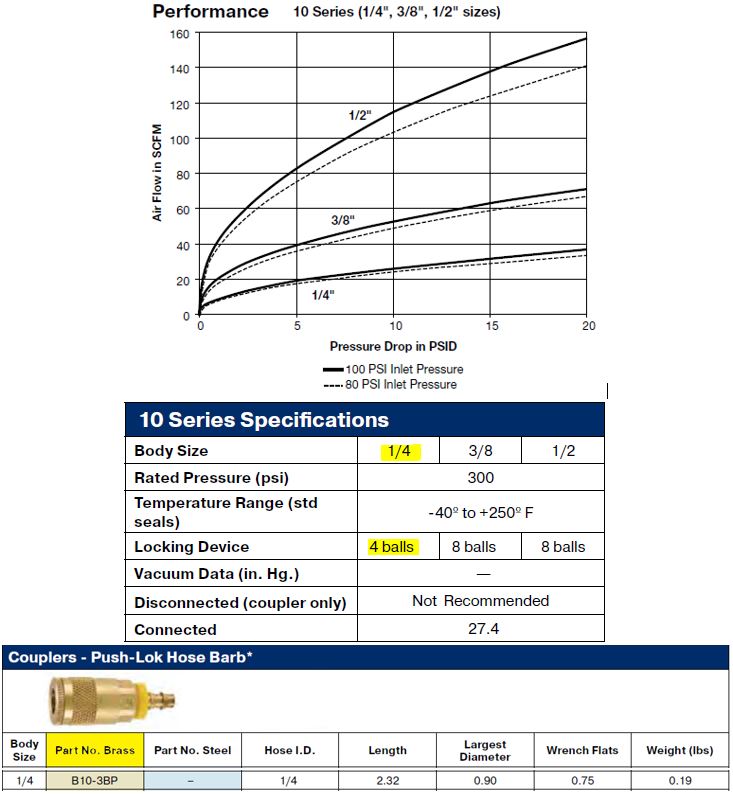

Tubular valve delivers high air flow with minimal pressure drop.
Brass body for added corrosion resistance.
Standard seal in Nitrile.
Steel nipples are case hardened
Applications:
Air compressors, Pneumatic tools, Water, Grease, Paint
The coupler half contains a shut-off valve that is automatically opened when a mating nipple is inserted and automatically closed when the nipple is removed.
Other know codes: Q-B10-3BP, B10-3BP,
