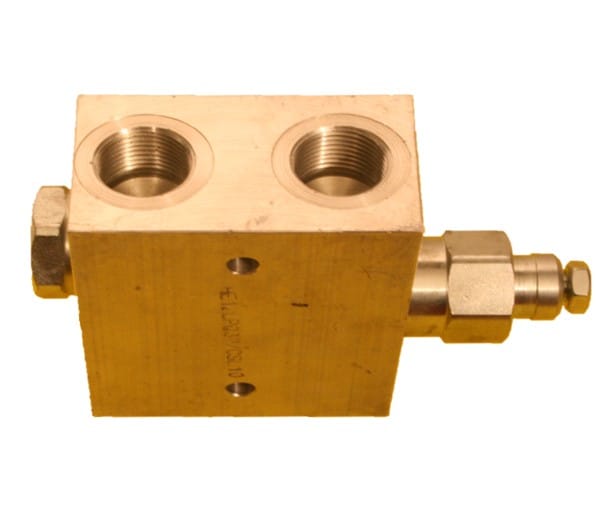

Sequence and Unloading Valve 1/2inch

SKU: VV-LPQ30-CSL10
Hystar

Sequence & Unloading Pilot Operated Valve 1/2″ BSP – LPQ30

Web Price:

Original price was: R3,565.00.Current price is: R2,852.00.

Stock:

2 in stock

  • Returns/Exchanges*
  • Delivery in 24 - 72 Hours*
  • Manufacturer's Warranty

About This Item

Sequence & Unloading Valve 1/2″ BSP

  • LPQ 30
  • Sequence Valves
  • Sequence and Unloading Pilot Operated
  • G08  1/2″ BSP
  • 70Lpm
  • Max pressure on line 1: 210Bar
  • Max inlet pressure: 420Bar
  • Fluid Viscosity range: 2.8 – 380 cSt
  • Fluid Temp: -20°C  +80°C
  • Max reseat pressure: 7Bar
  • Cracking pressure 95% of setting value
  • Cracking pressure defined with 1 Lpm
  • Ports closest to cartridge gets oil only after the furthest ports reaches pressure.
  • Free reverse flow

View our Full Range of Special Valves HERE

Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.

Spec/Additional Data Sheet

 VV-LPQ30-CSL10
