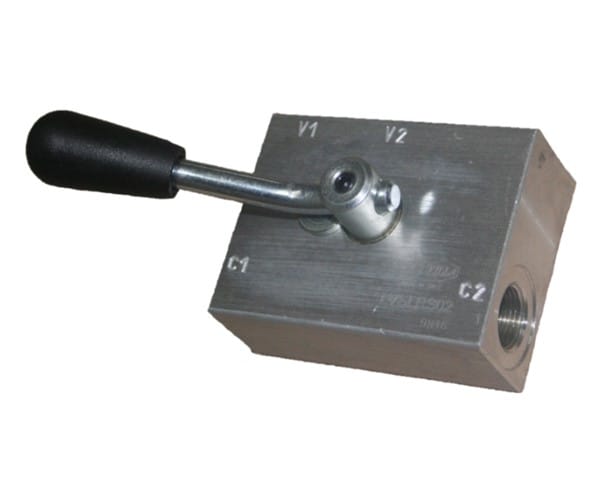

Pilot Check Valve 3/8″ Left
Please note that we supply either MTC or OFC brands, both have have different installation dimensions. You can confirm before ordering if important. Both brands spec sheets are attached. Below specs are based on MTC brand valve.
- Outrigger Single Pilot operated
- Check Valve
- By Pass type
- Left
- Plus Lock lever
- Manual Lock
- 3/8″ BSP – G-06
- Max 15Lpm
- Max 350Bar
- Pilot ratio 1:4.5
- Zinc plated steel body, Hardened internal components – OR seal on the pilot piston.
- No leakage
- These valves are used to hold and lock an actuator in position until the pilot pressure is applied. A pilot controls the flow in the opposite direction. The hand lever allows or stops the flow between A2 and A1 ports and can also control the actuator. They are mainly used on hydraulic cylinders on lorry cranes.
- Connect the actuator port to be controlled to A2 port and the pressure to A1 port.
- The other port of the actuator and the pilot pressure can be either connected to U1 or U2 ports.
View our Full Range of Load Holding Valves HERE
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
