NPT M 3/8″ x NPT F Swivel 3/8″ 45° Elbow

PART NO: AS-1013E4-0606

3/8″ NPT Male x 3/8″ NPT Female Swivel 45° Elbow

Web Price:

R51.69

Stock:

2 units

  • Returns/Exchanges - no problem*
  • Delivery in 48 - 72 Hours*
  • Manufacturer's Warranty

About This Item

NPT Male -06 x NPT Female Swivel -06 45° Elbow

Also known as 45° Elbow NPT Male x NPSM Female Swivel
Size: 3/8″ x 3/8″  -06 x -06
60° Cone Seat
Material: Carbon Steel – Zinc Plated Finish
Type: Instrumentation Fitting – Tube Adapter
National Pipe Thread (NPT)
Male Max Working Pressure: 7800PSIG / 537Bar
Female Max Working Pressure: 5300PSIG / 365Bar
45-degree elbow to connect a National Pipe Straight Mechanical (NPSM) female to a National Pipe Thread (NPT) female at a 45-degree angle.
Female NPSM threads on one end and male NPT threads on the other end for connecting two threaded pipes.
Steel for weldability and greater resistance to rust than iron.
Standard duty for light to medium pressure applications.
Society of Automotive Engineers (SAE)-compliant for SAE standards J512, J513, J514, J1926 and J1453 for functional requirements.

Other known codes: 2NU4, 3107, 1214, 2049, 9355, 1503, MP-FPX45

PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING.  YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.

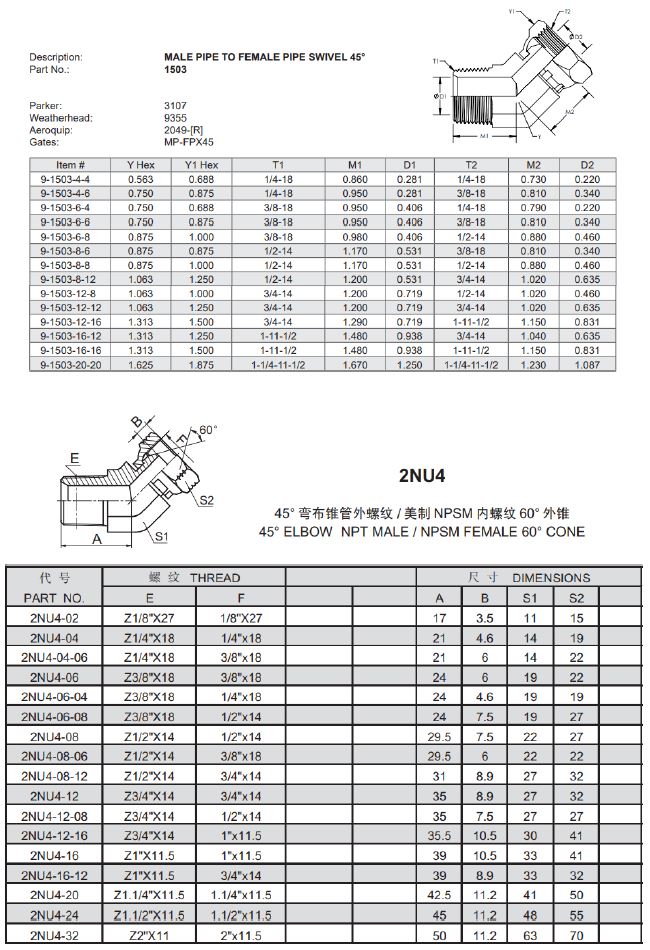

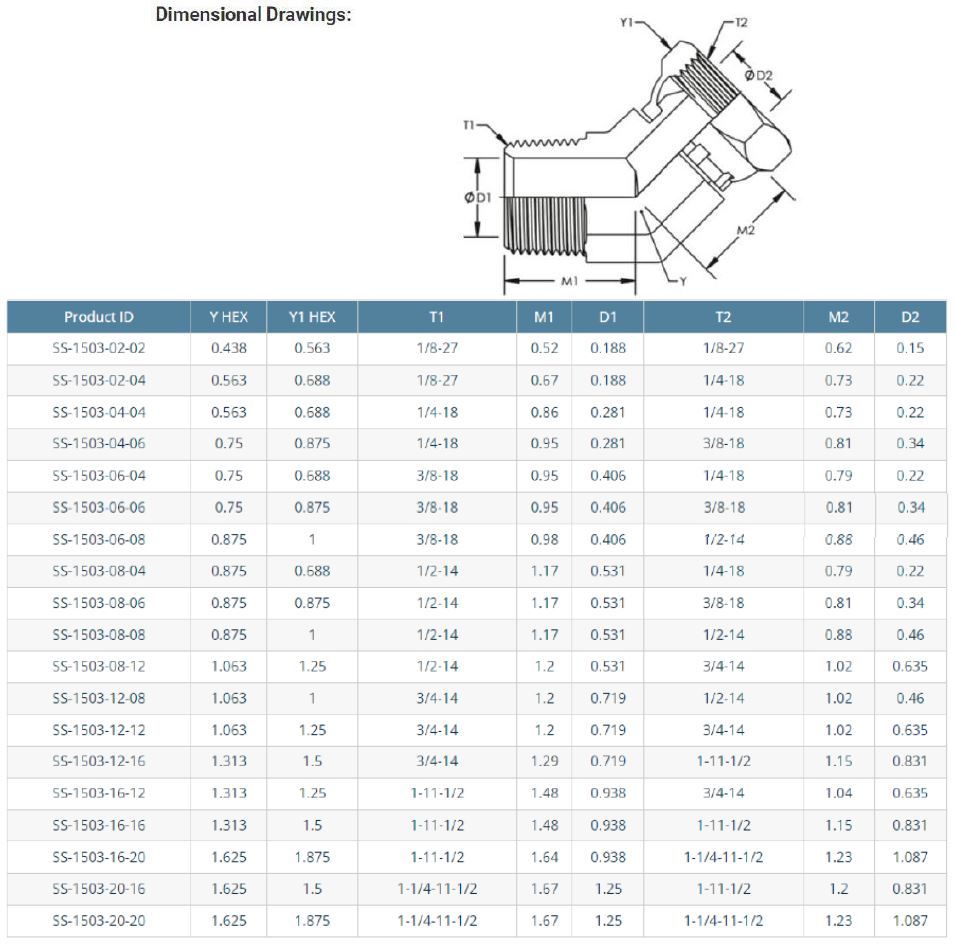

Spec/Additional Data Sheet
