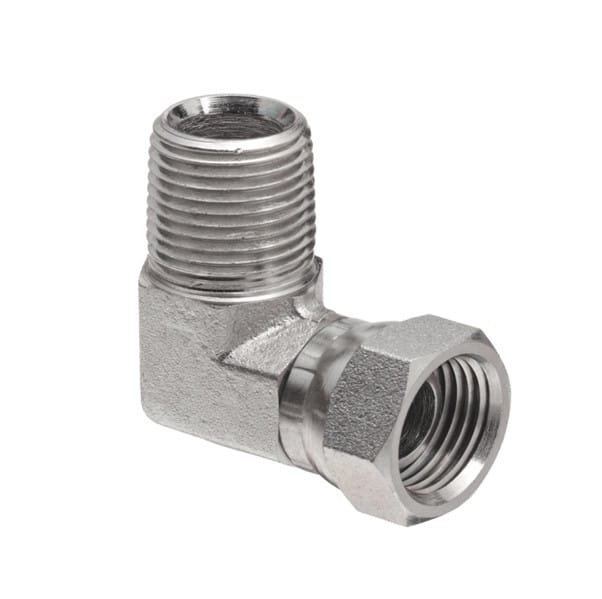

NPT Male -20 x NPT Female Swivel -20 90° Elbow
Also known as 90° Elbow NPT Male x NPSM Female Swivel
Size: 1 1/4″ x 1 1/4″ -20 x -20
60° Cone Seat
SAE 140230
Material: Carbon Steel – Zinc Plated Finish
Type: Instrumentation Fitting – Tube Adapter
National Pipe Thread (NPT)
Male Max Working Pressure: 6000PSIG / 413Bar
Female Max Working Pressure: 5000PSIG / 344Bar
90-degree elbow to connect a National Pipe Straight Mechanical (NPSM) female to a National Pipe Thread (NPT) female at a 90-degree angle.
Female NPSM threads on one end and male NPT threads on the other end for connecting two threaded pipes.
Steel for weldability and greater resistance to rust than iron.
Standard duty for light to medium pressure applications.
Society of Automotive Engineers (SAE)-compliant for SAE standards J512, J513, J514, J1926 and J1453 for functional requirements.

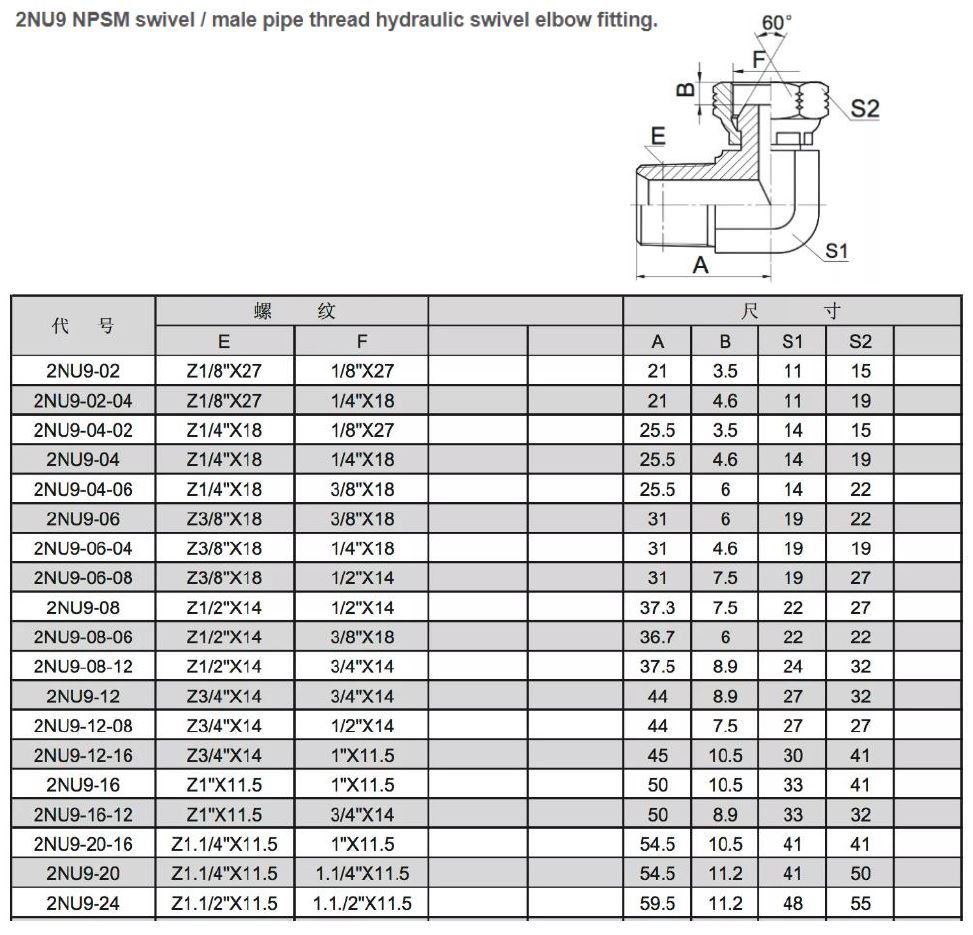

Other known codes: 2NU9, 9405, 2107, 1218, 2047, 1501
