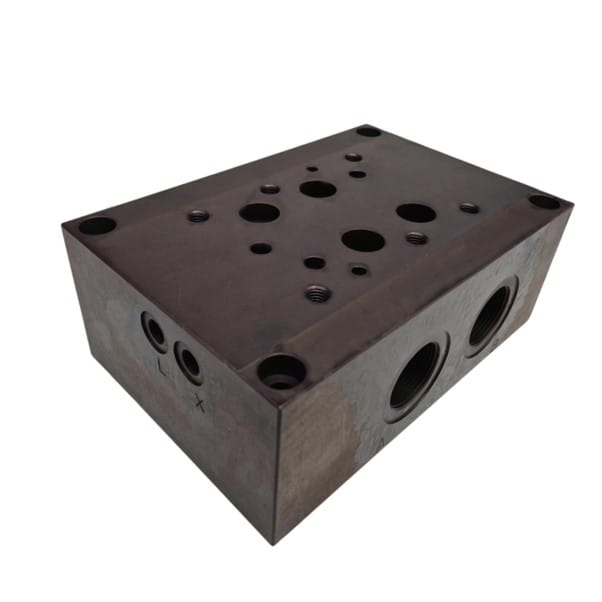

NG25 Subplate G20 A-B Ports on Side, P-T on Side and Rear
Original price was: R12,420.00.R9,936.00Current price is: R9,936.00.
NG25 Cetop8 Subplate – Ports 1 1/4″ = G20 A & B on Side, P & T on Side and Back/Rear Ports
Secure Checkout
Fast Nationwide Delivery
Multi Payment Options
Expert Technical Support
Easy Returns
NG25 Cetop8 Subplate 1 1/4" Ports A & B on Side - P & T on Side and Rear/Back
ES8A114PL…F
Series: NG25 Cetop8 Manifold Monoblock
Single Subplate
Type: ES8A114PL…F
Ports:
A-B are on the Side – 1 1/4" BSP = G20
P-T on Side and Back/Rear – 1 1/4" BSP = G20
The Drain and Pilot ports are 1/4" = G04
Prearrange for modular system
Working Pressure: 180Bar
Peak Pressure: 220Bar
These Subplates have fixed holes in compliance with DIN24340 standards.
They are made of Cast Iron GG25, according to UNI EN 16482 standards.
The O-ring seal fitted on the plates are made of nitrilic – NBR - 70 Shore mix.
All subplates are supplied with manganese phosphate coat according to UNI ISO 9717 norm.
Subplates are made of material and with thread suitable for cylindrical fittings. The product is not grated for assembling with conical fittings.
Other known codes: SUB-ES8A114PLY, ES8114PLF, ES8114P__
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
Additional information
| Weight | 28 kg |
|---|---|
| Dimensions | 25 × 19 × 12 cm |
| Brand | Hystar |
