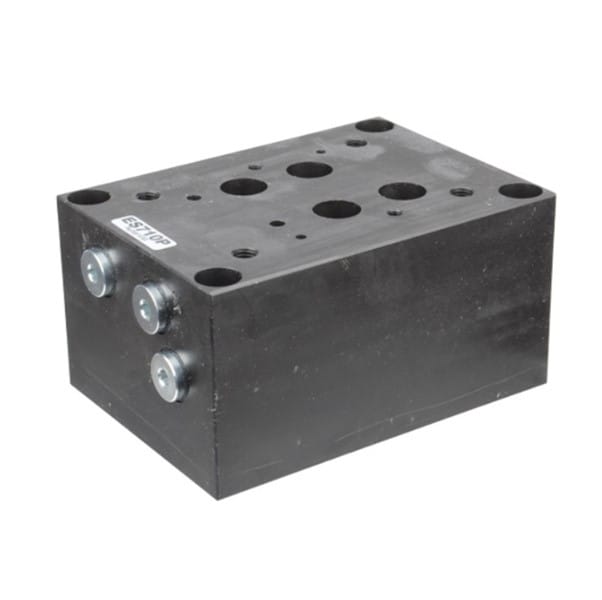

NG16 Cetop7 Bottom/Back/Rear Entry 1″ Ports – Subplate
ES710P
Series: NG16 Cetop7 Manifold Monoblock
Single Subplate
Type: ES701P
Ports A-B-P-T are 1” BSP = G16 on back/rear/bottom
Prearrange for modular system
Working Pressure: 220Bar
Peak Pressure: 260Bar
These Subplates have fixed holes in compliance with DIN24340 standards.
They are made of Cast Iron GG25, according to UNI EN 16482 standards.
The O-ring seal fitted on the plates are made of nitrilic – NBR – 70 Shore mix.
All subplates are supplied with manganese phosphate coat according to UNI ISO 9717 norm.
Subplates are made of material and with thread suitable for cylindrical fittings. The product is not grated for assembling with conical fittings.
Other known codes: SUB-ES7A10P, ES710P
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
