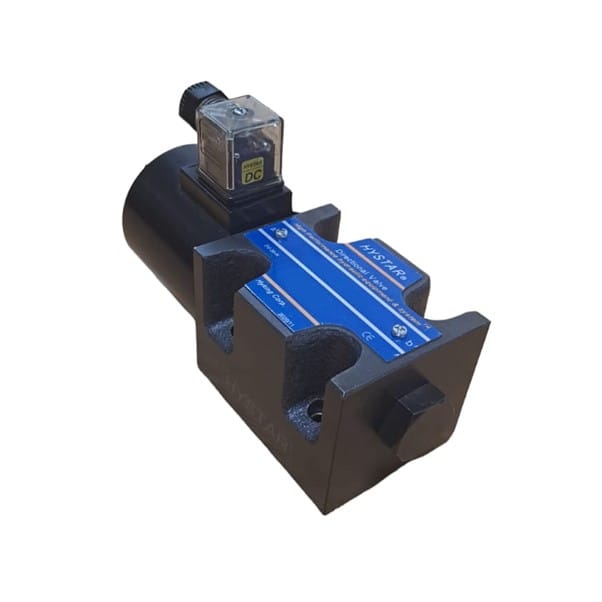

Single Solenoid Operated Directional Control Valve
DSG-2B2-N-03 Hystar Valve
Cetop 5 – NG10 Mounting Interface/Subplate Mounted
Single Solenoid Valve
Spring Offset – 2 Position
Neutral/Off: P to A and B to T
Closed Transition Valve (all ports blocked in transition / crossover only)
Energized: P to B and A to T
Available DC Coil Type Power Source Voltages: DC12V and DC24V
Max Operating Pressure for Ports P | A | B: 315Bar / 4500PSI
Max Operating Pressure Port T: 160Bar / 2300PSI
Max Flow Rate: 70 – 120Lpm / 18.5 – 31.7USgpm
Type of Electrical Connection: DIN / Hirshman type
DIN 43650 / ISO 6952
Includes 4x M6 Bolts (4x DIN 912 Bolts) & LED Â DIN / Hirschman plugs
Do not use with a fixed displacement pump.(Rather use 2B3)
Use Hydraulic Fluids Equivalent to ISO VG32 or VG46
Operating Temperature Recommended: -15°C ~ +70°C
Operating Viscosity:Â 15 ~ 400cSt
Filtration:Â 25 Microns Absolute or Finer
Known codes: DSG-2B2-N-03-D1-30, DSG-2B2-N-03-D2-30, DSG-2B2-N-03-D4-30, DSG-2B2-3-,
