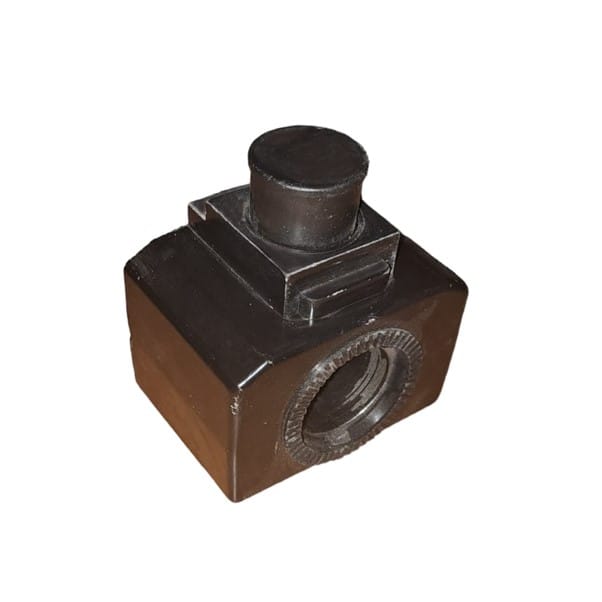

NG10 AC24V Coil for DSG-03-N Valves
Hystar G03002
Cetop5 NG10 24VAC Coil only
For DSG-03-N Solenoid Operated Directional Valves
AC24V
ID: 26mm
OD: 69mm
Length: 47.5mm
Insulation high voltage test: 1500 V/min (1800V/sec)
Double insulation wiring, hermetically sealed for moisture-resistance.
Insulation class H
Max allowed Coil temp 150°C
Do Not exceed permissible voltage range of the coil used
Do Not supply electric power to the AC Solenoid unless the coil is mounted to the valve.
On Double Solenoid valves, do not energize both at the same time as it will result in coils burning out.
DSG-NO3-24VAC, G03002
