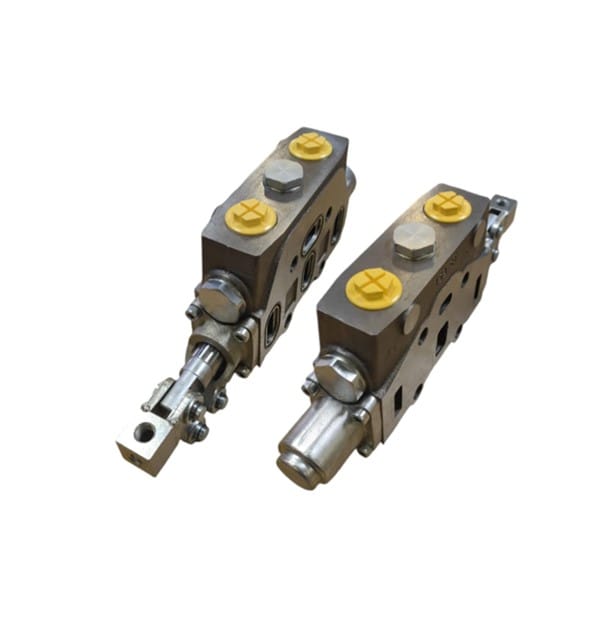

HC-D20 Series Sectional Valves – Work Section – 3 Position Double Acting – 1″ BSP – Port Relief Facility only
HC-D20 Work Section with Port Relief Facility and Check Valve
Parallel Circuit Work Section Valve – RP G06
Spool Type: Standard 3 Position Double Acting – W001A
Spool Actuation: H101 | M14 Lever Cap with Linkage HC-D20-LEV-CAP
Spool Return Action: 3 Position Spring Centered Spool End Cap F001A
Thread Type: HC-D20 RP G06
Work Section (A) and (B) Port: 1″ BSP | -G16
Auxiliary Valves | Port Relief (ARV) sold separately, not included on Work Section: HC-D20-PR-180
M14 Lever included | HC-LEVER-M14
Standard Working Conditions Spec
Flow Rate: 66Gpm
Pressure Rate: 5000Psi | 345Bar
Max Flow: 250Lpm
Max Pressure on (T): 290Psi | 20Bar
Operating Temp: -25°C to +80°C
Kinematic Viscosity: from 10 – 460 mm²/S
Contamination Level: 19/16 ISO 4406
Filtration Level: β 10 > 75
To be used with HC-D20-I Inlet Section and HC-D20-O Outlet Section
Other known codes: HC-D20-W-PR, HC-D20 W001A H101 F001A RP G06, HC-D20-W001A-H101-F001A-RP-G06
