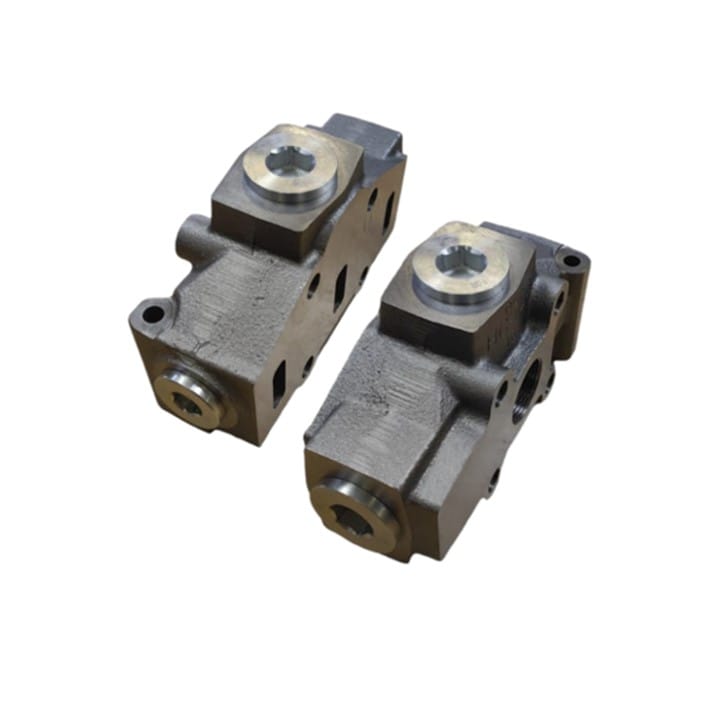

HC-D20 Series Sectional Valves – Upper Outlet Section with Single Return (T) Left-Side Inlet (P)
HC-D20 Outlet Section with Single Return (T) Left-Side Inlet (P)
Outlet with Single Tank Classification
Outlet on (T) and Inlet on (P)
T Port Sizes: 1 1/4” BSP | -G20
Outlet Position: Upper Outlet – HC-D20 TK A G07 (= 1 1/4″ BSP)
Standard Working Conditions Spec
Flow Rate: 66Gpm
Pressure Rate: 5000Psi | 345Bar
Max Flow: 250Lpm
Max Pressure on (T): 290Psi | 20Bar
Operating Temp: -25°C to +80°C
Kinematic Viscosity: from 10 – 460 mm²/S
Contamination Level: 19/16 ISO 4406
Filtration Level: β 10 > 75
To be used with HC-D20-I Inlet Section and either HC-D20-W-PR Outlet Sections
Other known codes: HC-D20-O, HC-D20 TK A G07, HC-D20-TK-A-G07
