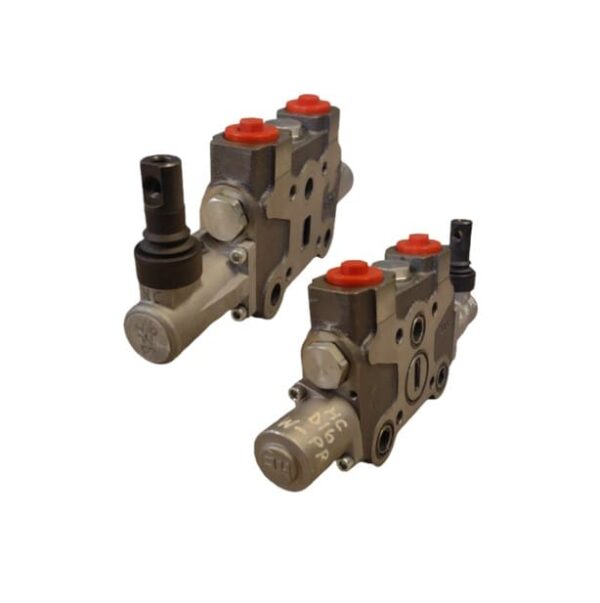

HC-D4 Series Sectional Valves – Work Section – 3 Position Double Acting – 3/4″ BSP – Port Relief Facility only
HC-D16 Work Section with Port Relief Facility and Check Valve
Parallel Circuit Work Section Valve – RP G05
Spool Type: Standard 3 Position Double Acting – W001A
Spool Actuation: H001 | M10 Lever Cap HC-D16-LEV-CAP
Spool Return Action: 3 Position Spring Centered Spool End Cap F001A
Thread Type: HC-D16 RP G05
Work Section (A) and (B) Port: 3/4″ BSP | -G12
Auxiliary Valves | Port Relief (ARV) sold separately, not included on Work Section: HC-D16-PR-180
M10 Lever included | HC-LEVER-M10
Standard Working Conditions Spec
Flow Rate: 40Gpm
Pressure Rate: 5000Psi | 345Bar
Max Flow: 150Lpm
Max Pressure on (T): 290Psi | 20Bar
Operating Temp: -25°C to +80°C
Kinematic Viscosity: from 10 – 460 mm²/S
Contamination Level: 19/16 ISO 4406
Filtration Level: β 10 > 75
To be used with HC-D16-I Inlet Section and HC-D16-O Outlet Section
Other known codes: HC-D16-W-PR, HC-D16 W001A H001 F001A RP, HC-D16-W001A-H001-F001A-RP
