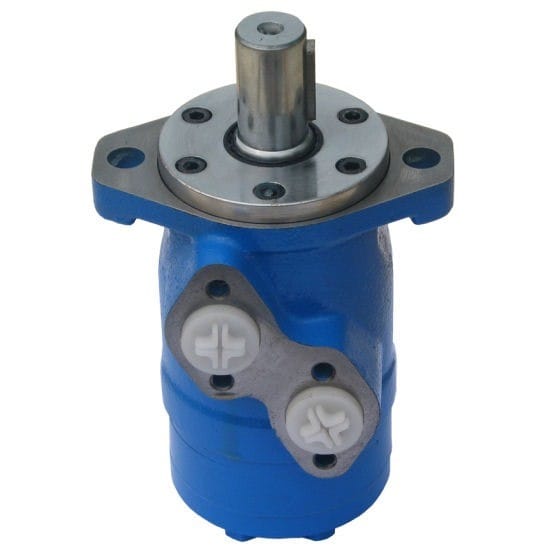

BMP Series 315cc Gerotor Gear Type – Axil Distribution Motor
Series: BMP Series
Category: Gerotor Gear Type – Hydraulic Orbital Motor
Type: Axil Distribution Motors
Geometric Displacement (cm³/rev.): 314.50cc
Flange 2: Ø13.5 Rhomb-flange, Ø82.5 Spigot, 2Bolt
Output Shaft A: Ø25 – parallel key 8x7x32
Cylindrical Metric Shaft
Manifold Mount: 4xM8
Side Ports: G08 = 1/2” BSP
Drain Port: G04 = 1/4” BSP
Continuous Max Speed: 192rpm
Intermittent Max Speed: 240rpm
Continuous Max Torque: 375Nm
Intermittent Max Torque: 555Nm
Peak Max Torque: 350Nm
Continuous Max Output: 7kW
Intermittent Max Output: 8.50kW
Continuous Max Pressure Drop: 9MPa/90Bar
Intermittent Max Pressure Drop: 14MPa/140Bar
Peak Max Pressure Drop: 16MPa/160Bar
Continuous Max Flow: 60L/min
Intermittent Max Flow: 75L/min
Continuous pressure: Max. value of operating motor continuously.
Intermittent pressure: Max. value of operating motor in 6 sec per minute.
Peak pressure: Max. value of operating motor in 0.6 sec per minute.
BMP Series motors are small volume, economical type, which is designed with shaft distribution flow, which adapts the Gerotor gear set design and provides compact volume, high power and low weight.
Characteristic Features:
Advanced manufacturing devices for the Gerotor gear set, which provides small volume, high efficiency and long life.
Shaft seal can bear higher pressure of motors of which can be used in parallel or in series.
Advanced construction design, high power and low weight.
Other known codes: BMP-315-2-A-D, BMP315-2-A-D, BMP3152AD, BMP-315-2B25, OMP-315, OMP315, OMP 315
