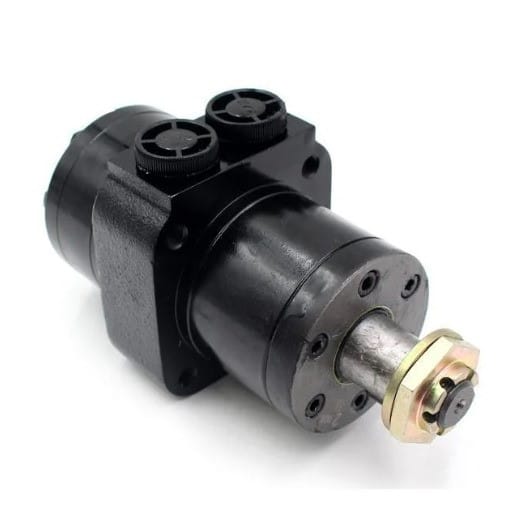

BMP Series 160cc Gerotor Gear Type Motor – Cone Shaft, Wheel Mount Flange
Series: BMP Series
Category: Gerotor Gear Type – Hydraulic Orbital Motor
Type: Axil Distribution Motors
Geometric Displacement (cm³/rev.): 157.20cc
Flange: Wheel-flange Pilot Ø80×7.5
4Bolt Flange
Output Shaft T: Cone Shaft Ø28.56 – Parallel key B5x5x14
Tightening Torque: 100± 10Nm
Side Ports: G08 = 1/2” BSP
Drain Port: G04 = 1/4” BSP
Continuous Max Speed: 383rpm
Intermittent Max Speed: 475rpm
Continuous Max Torque: 302Nm
Intermittent Max Torque: 370Nm
Peak Max Torque: 434Nm
Continuous Max Output: 10kW
Intermittent Max Output: 12kW
Continuous Max Pressure Drop: 14MPa/140Bar
Intermittent Max Pressure Drop: 17.50MPa/175Bar
Peak Max Pressure Drop: 22.50MPa/225Bar
Continuous Max Flow: 60L/min
Intermittent Max Flow: 75L/min
Continuous pressure: Max. value of operating motor continuously.
Intermittent pressure: Max. value of operating motor in 6 sec per minute.
Peak pressure: Max. value of operating motor in 0.6 sec per minute.
BMP Series motors are small volume, economical type, which is designed with shaft distribution flow, which adapts the Gerotor gear set design and provides compact volume, high power and low weight.
Characteristic Features:
Advanced manufacturing devices for the Gerotor gear set, which provides small volume, high efficiency and long life.
Shaft seal can bear higher pressure of motors of which can be used in parallel or in series.
Advanced construction design, high power and low weight.
Other known codes: BMPW160-T-G, BMPW-160-T-G, BMPW160TG, BMP-160-4WT, OMP-160-4, OMPW 160
