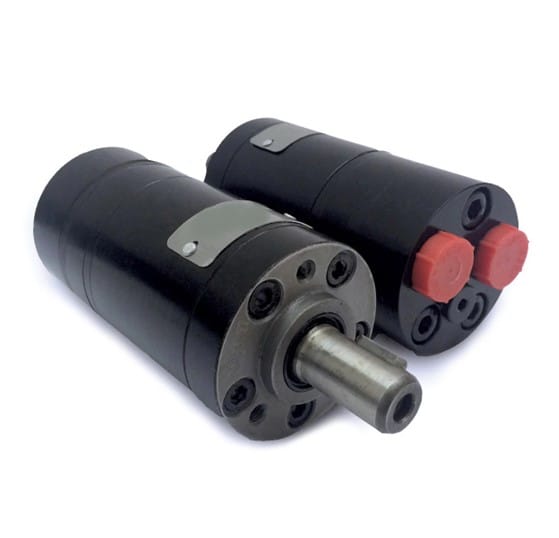

BMM Series 8.2cc Gerotor Gear Type – Axil Distribution Motor
Series: BMM Series
Category: Gerotor Gear Type – Hydraulic Orbital Motor
Type: Axil Distribution Motors
Geometric Displacement (cm³/rev.): 8.2cc
Flange M: 3-M6 Circle-flange, pilot Ø31.5×5
Output Shaft A: Shaft Ø16, parallel key 5x5x16
End Work Ports: G06 = 3/8” BSP
Drain Port: G02 = 1/8” BSP
Continuous Max Speed: 1950rpm
Intermittent Max Speed: 2450rpm
Continuous Max Torque: 11Nm
Intermittent Max Torque: 15Nm
Peak Max Torque: 21Nm
Continuous Max Output: 1.8kW
Intermittent Max Output: 2.6kW
Continuous Max Pressure Drop: 10MPa/100Bar
Intermittent Max Pressure Drop: 14MPa/140Bar
Peak Max Pressure Drop: 20MPa/200Bar
Continuous Max Flow: 16L/min
Intermittent Max Flow: 20L/min
Continuous pressure: Max. value of operating motor continuously.
Intermittent pressure: Max. value of operating motor in 6 sec per minute.
Peak pressure: Max. value of operating motor in 0.6 sec per minute.
BMM Series motors are small volume, economical type, which is designed with shaft distribution flow, which adapts the Gerotor gear set design and provides compact volume, high power and low weight.
Characteristic Features:
Advanced manufacturing devices for the Gerotor gear set, which provides small volume, high efficiency and long life.
Shaft seal can bear higher pressure of motors of which can be used in parallel or in series.
Advanced construction design, high power and low weight.
Other known codes: BMM-8-M-A-1E, BMM8-M-A-1E-R, BMM8MA1ER, BMM-08, OMM-08, OMM08
