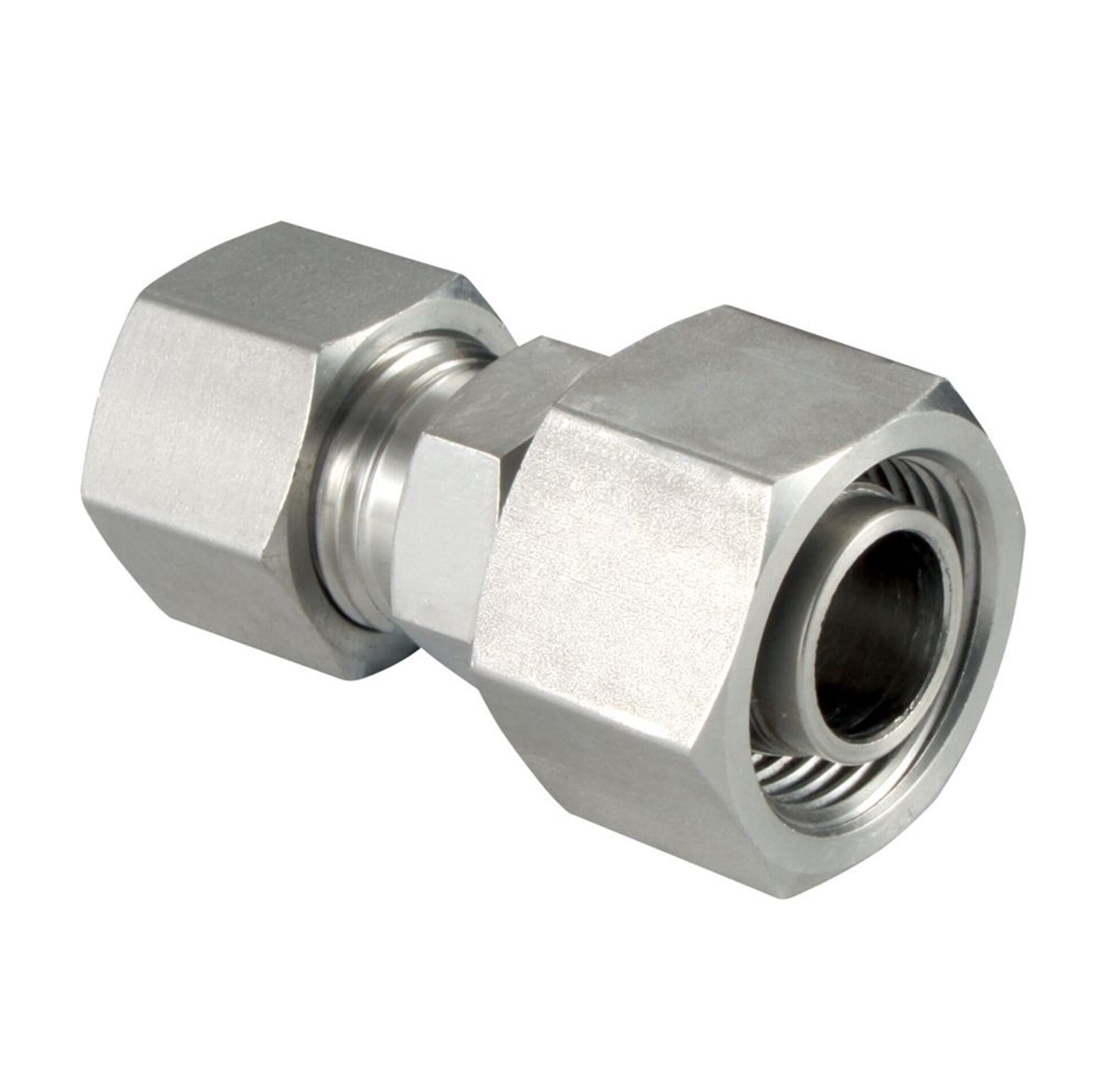

Stainless Steel 42L Metric Female Swivel with O-Ring to 15L Metric Male with Nut & Cutting Ring  - Light Series

Also known as: EO 24° DKO Swivel / EO 24° Cone End, Reducer Tube Adapter with Swivel nut, Metric Female Swivel to Male Reducer, Sandpipe Reducer Swivel Female
Connection 1 Size: 42mm (OD)
Connection 1 Thread: M52x2
Connection 1 Type: Metric Female 24° Cone Swivel Nut with O-Ring
Connection 2 Size: 15mm (OD)
Connection 2 Thread: M22x1.5
Connection 2 Type: Metric Male 24° Cone - Nut and Ring incl.
Series: EO Light Series
Specifications: DIN 2353, ISO 8424
Material: Stainless Steel
Product Type: Hydraulic DIN Fitting
Product Style: Adjustable Position
Product Shape: Straight
Seal Type: O-Ring
Seal Material: FKM (VIT)
Fitting Configuration: Tube to Swivel
Pressure Rating: 160Bar / 2321Psi
Max Temperature: 400°C
Min Temperature: -60°C
Application: Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging
Fluid Types: Hydraulic Fluids, Chemicals, Fuels, Cases, Steam

Other known codes: RED42-15L-71, RED42/15LOMD71, 2C-22-52RN, P REDVDN 42/15 L, WAL621406, Z KORL 42-15 TLM

We have loaded our most commonly sold Stainless Steel Adapters, so not all sizes unfortunately, however if you are needing a size not loaded you can enquire instore (for a quote and eta) 021 511 0590 or if you prefer ordering online, email onlinestore@fluidco.co.za the sizes needed and we will confirm cost and eta for you to order online.

PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING.  YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
