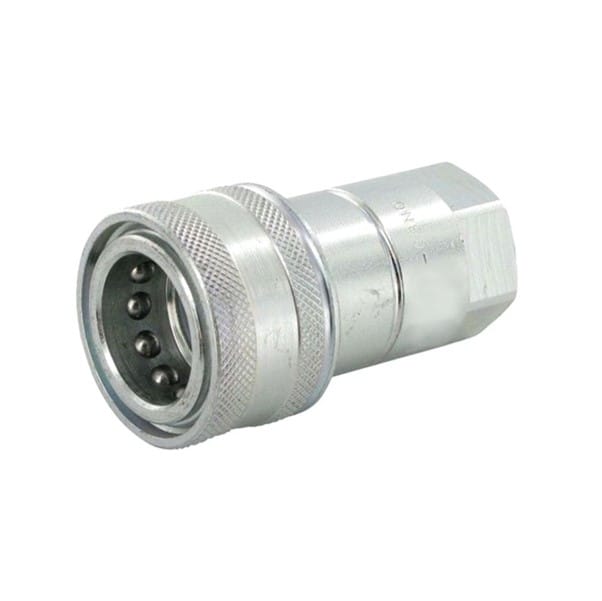

1/4″ PIN Type Body 1/4″ BSP Female Thread

SKU: Q-QCF-04-PIN

PIN Type Agricultural Series 1/4″ (-04) Hydraulic Quick Coupler Body – Carbon Steel – 1/4″ (-04) BSP Female Thread

Web Price:

Original price was: R215.05.Current price is: R172.04.

Stock:

14 in stock

  • Returns/Exchanges*
  • Delivery in 24 - 72 Hours*
  • Manufacturer's Warranty

About This Item

Agricultural Type – Pin Type 1/4″ (-04) Coupler Body with 1/4″(-04) BSP Female Thread – Carbon Steel

Agricultural Interchange – Hydraulic Quick Coupler Body
Ball Locking Coupling
Interchangeable: ISO 7241-1 A Series
Body Size: 1/4″
Ø DN: 1/4″ – 6mm
Thread Size: 1/4″ BSP Female
Temperature Range: -20°C to +110°C
Pressure Rating: 5075Psi – 350Bar
Burst Pressure: 20300Psi – 1400Bar
Standard Nitrile Seals
Also knows as Series N and RX Series.
Features:
Basic operation where coupler sleeve is manually retracted to allow connection with male tip
Plugs/Nipples/Inserts are treated with induction hardening
Ball and poppet valve options
Internal valves in hardened steel
Standard seals in nitril rubber
Back-Up Seals in teflon
Applications include:
Hydraulic loaders, Add-on hydraulic circuits, Hydraulic tools, Construction equipment, Forestry equipment, Agricultural equipment, Oil equipment steel mill machinery, Other demanding hydraulic applications

Other know codes: Q-QCF-04-PIN, NF10-04, RXG14SN

PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING.  YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.

Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.

Spec / Additional Data Sheet
Quick Coupler Size Dimension Chart
