1/4″ 10 Series Insert 1/4″ NPT Female Thread

SKU: Q-3C

3C – 1/4″ (-04) 10 Series Air/Gas Quick Coupler Insert – Carbon Steel – 1/4″ (-04) NPTF Female Thread

Web Price:

Original price was: R66.70.Current price is: R53.36.

Stock:

18 in stock

  • Returns/Exchanges*
  • Delivery in 24 - 72 Hours*
  • Manufacturer's Warranty

About This Item

10 Series 1/4″ (-04) NPTF Insert with 1/4″ (-04) NPTF Female Pipe Thread – Carbon Steel

Pneumatic Quick Coupling
Equivalent to Parker 3C
TRU-Flate Design – Automotive Interchange
Manual Sleeve
Single Shut-Off
Insert Size: 1/4″
Carbon Steel Insert
Thread Size: 1/4″-18 NPTF Female
Temperature Range: -4°C to +121°C
Rated Pressure: 300psi / 20Bar
Locking Device: 4 Balls
Features:
Integral sleeve guard resists accidental disconnection.
Tubular valve delivers high air flow with minimal pressure drop.
Brass body for added corrosion resistance.
Standard seal in Nitrile.
Steel nipples are case hardened
Applications:
Air compressors, Pneumatic tools, Water, Grease, Paint
The coupler half contains a shut-off valve that is automatically opened when a mating nipple is inserted and automatically closed when the nipple is removed.

NPTF Stands for: National Pipe Taper Fuel (NPTF), also called Dryseal American National Standard Taper Pipe Thread, defined by ASME B1. 20.3, designed to provide a more leak-free seal without the use of PTFE tape (aka “Teflon”) or other sealant compound.  NPTF can be used with normal NPT.

Other know codes: Q-3C, 3C, CP20, GL-CP20

PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING.  YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.

Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.

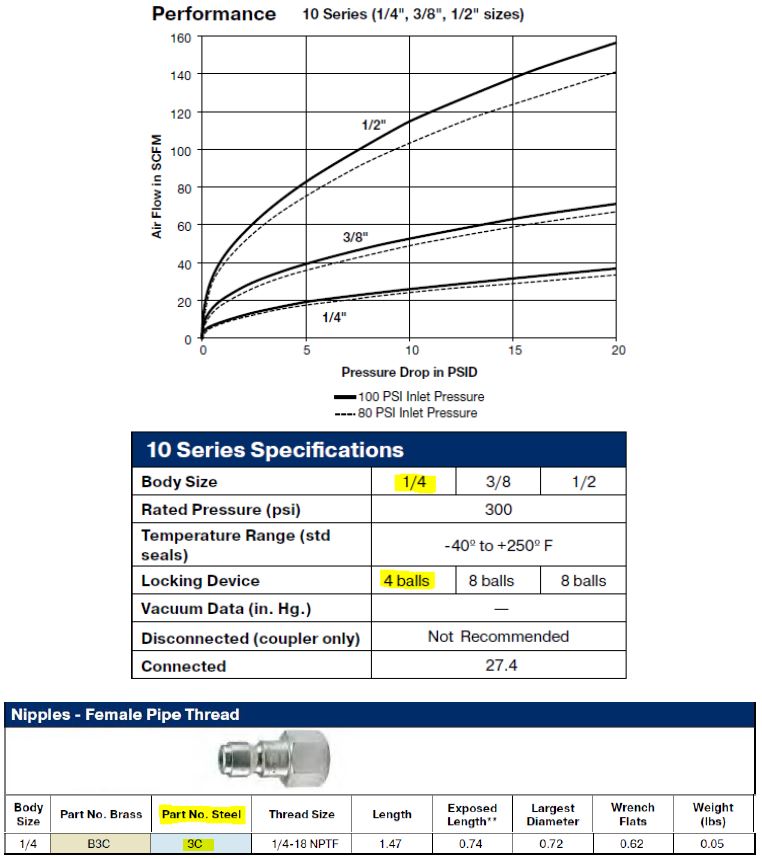

Spec / Additional Data Sheet
