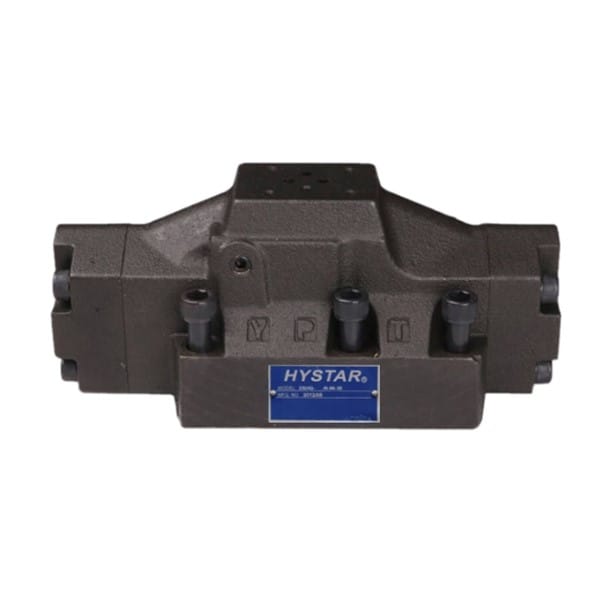

NG25 Cetop8 Base Valve Only for Pilot Operated Directional Control Valve
DSHG-3C60-06-30
NG25 Pilot Operated Directional Control Valve
Cetop 8 – NG25 Mounting interface/Subplate Mounting
Base Valve Only. Requires an NG6 pilot valve on top.
P Port Blocked – A and B Open to T – 1” = G16 Ports
Spring Centered 3 Position
Important:
Pilot: Valves are set up as Internal pilot, but can be converted to External Pilot.
Drain: Valves are set up as External drain, but can be converted to Internal drain.
Mounting Surface: CETOP8 / ISO 08-NFPAD08
Flowrate: 310-500Lpm / 82~132USgpm
Max Operating Pressure: 315Bar / 4500Psi
Min Required Pilot Pressure: 8Bar / 114Psi
Max Pilot Pressure: 250Bar / 3600Psi
Permissible Back Pressure T Ext. Drain: 210Bar / 300Psi
Permissible Back Pressure T Int. Drain: 160Bar / 2300PSI
Switching Frequency: 120 times/min
Operating Temp Range Recommended: -15°C ~ +70°C
Operating Velocity: 15 ~ 400cSt
Filtration: 25 Microns Absolute or Finer
Hydraulic Fluids: Use Hydraulic fluids equivalent to ISO VG32 or VG46
Includes below Socket Head Cap Screws:
Includes: 6x M12x55Lg – Tightening Torque is 100-123Nm
To add a NG6 3C4 Pilot Valve to this Base Valve, see the below options:
DSG-3C4-01 AC
DSG-3C4-01 DC
Other known codes: DSHG-3C60-06, DSHG-06-3C60, DSHG-3C60-06-30, DSHG-3C60-NO6, DG08H, F5-25-C-6X-ET, DSGH 06, DE.3015_
