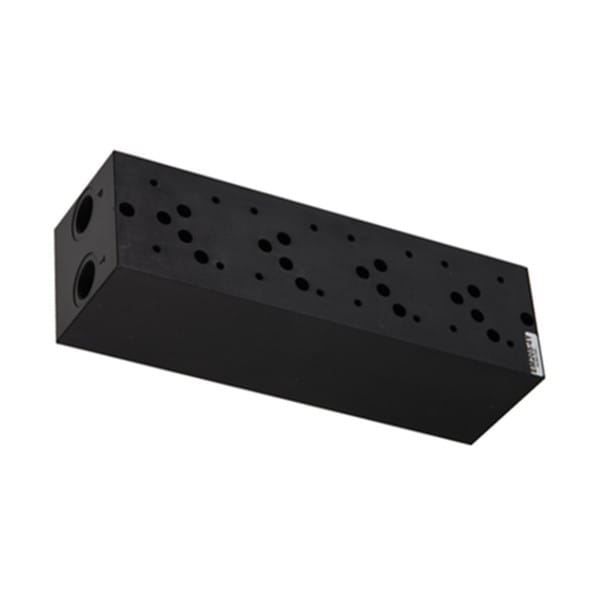

NG10 4-Station – Subplate for Modular System without Relief
EMS2054/Y
NG10 Cetop5 Manifold Monoblock
4-Station Parallel Manifold Block
Ports A & B are 1/2” BSP = G08 on side
Ports P & T are 3/4” BSP = G12 on both ends
Prearrange for modular system
Without Relief Valve
Made of cast iron GG25 according to UNI EN 1561 Standard
Fixed holes Compliance with DIN 24340 Standard
The O-Ring seals fitted on plates are made of nitrilic – NBR – 70 Shore mix
These monoblocks are protected externally with a coat of water bicomponent polyurethane enamel in a shining black colour type RAL 9005.
NG10 Working Pressure: 270Bar
NG10 Peak Pressure: 310Bar
Threads: UNI-ISO 228
Other known codes: EMS205/4Y, EMS2054Y, EM-205/4Y, EM-2054Y, SUB-EM2054Y, SUB-EM2354Y
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
